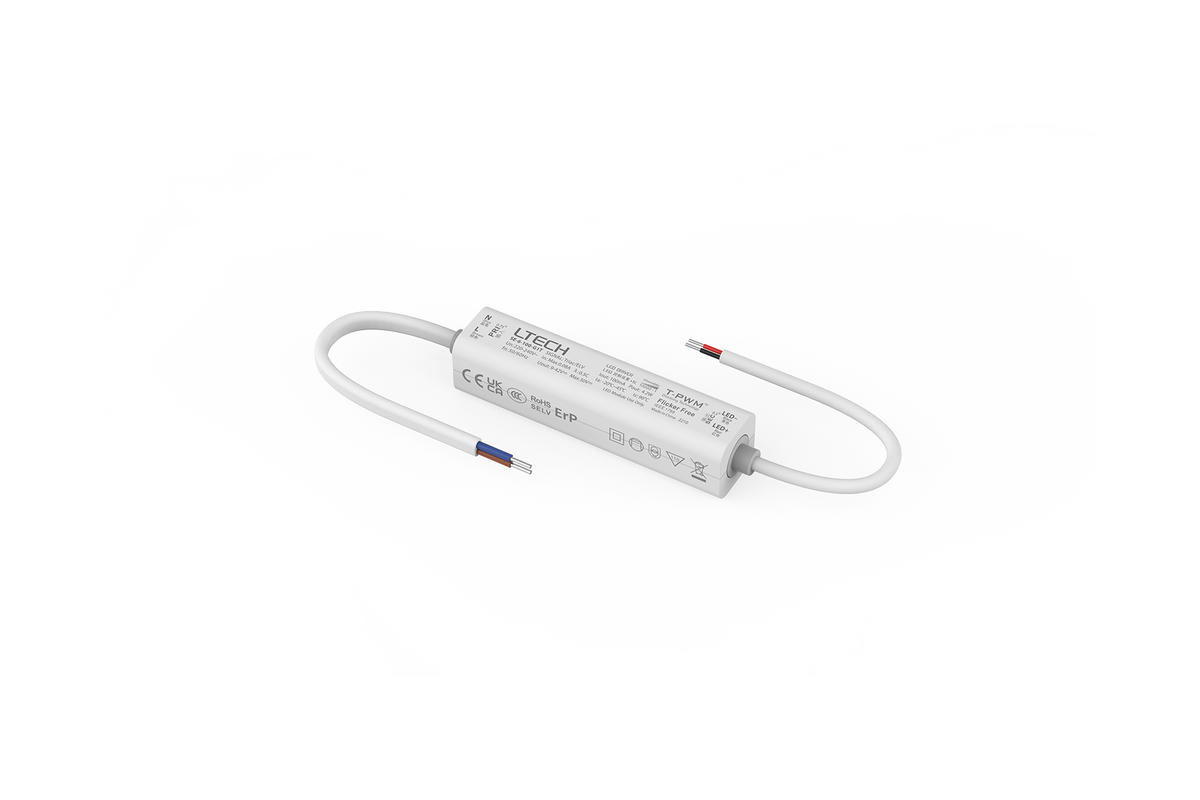

LTECH SE-6-100-G1T 4.2W 100mA TRIAC/ELV Constant Current LED Driver

Compact Phase-Cut Dimmable LED Driver for Professional Indoor Lighting

The LTECH SE-6-100-G1T is a compact constant-current LED driver designed for professional indoor lighting applications. Providing a fixed 100mA output with a 9–42V DC operating range and up to 4.2W output power, it is suitable for compatible LED modules used in decorative, architectural and commercial luminaires.

Operating from a 220–240V AC mains supply, the SE-6-100-G1T supports both leading-edge TRIAC and trailing-edge ELV phase-cut dimming. It provides smooth dimming from 0–100% down to 0.1%, with T-PWM technology and flicker-free performance designed to meet IEEE 1789 high-frequency exemption requirements.

The driver features isolated constant-current output, Class II construction and an IP20 rating, together with overload, short-circuit and over-temperature protection with automatic recovery. Its soft-on and fade-in functions also help provide smoother, more comfortable lighting transitions.

Measuring just 84 × 20 × 20mm and weighing approximately 50g, the SE-6-100-G1T is easy to integrate where installation space is limited. Its compact housing, rated service life of up to 100,000 hours and 5-year manufacturer warranty make it a practical choice for professional dimmable LED lighting installations.
