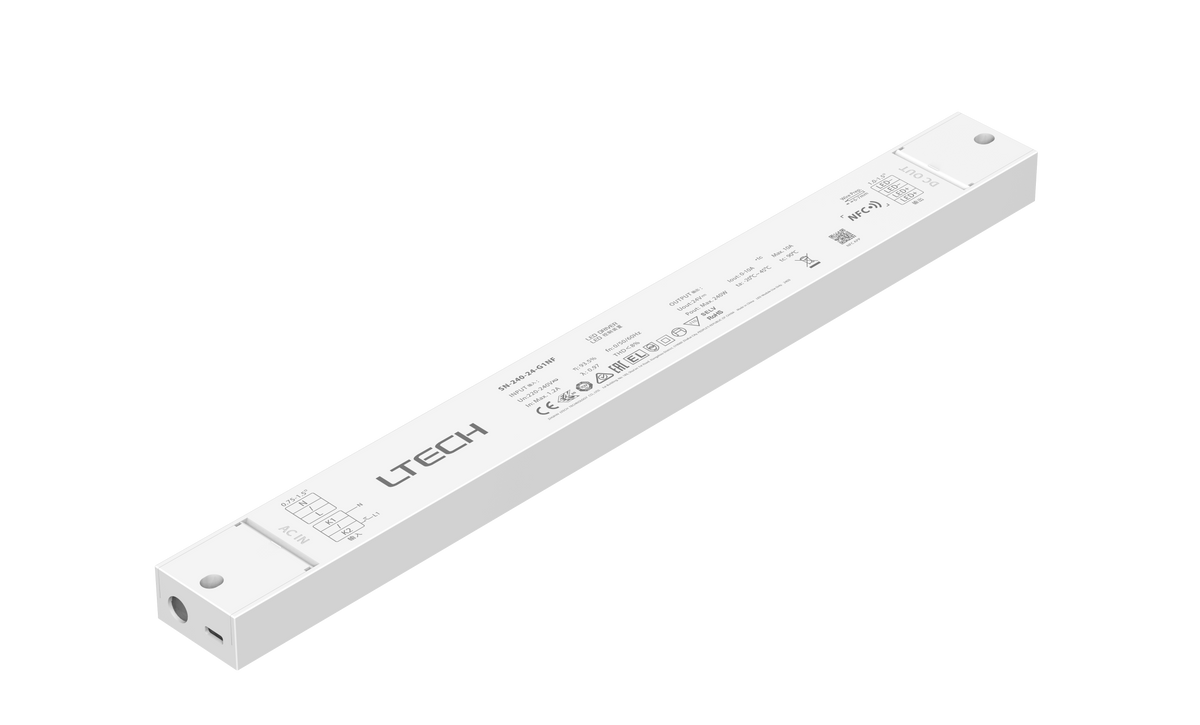

LTECH SN-240-24-G1NF 240W 24V NFC Programmable Constant Voltage LED Driver

Ultra-Slim Non-Dimmable LED Driver with NFC Parameter Programming

The LTECH SN-240-24-G1NF is a high-output constant-voltage LED driver designed for professional indoor lighting applications. Providing a regulated 24V DC output with a maximum current of 10A and up to 240W output power, it is suitable for compatible LED strip lighting and other 24V LED luminaires used in office, decorative and commercial installations.

Operating from a 220–240V AC mains supply, the SN-240-24-G1NF delivers 93.5% typical efficiency, with a power factor greater than 0.97 and THD below 8% at full load. The driver features isolated constant-voltage output, Class II construction and an IP20 rating for professional indoor lighting installations.

NFC programming allows parameters including maximum brightness, power transition time, PWM frequency and corridor dimming settings to be configured using the NFC Lighting app while the driver is powered off. The driver also supports soft-start lighting, while the corridor-light function allows configurable timing and brightness levels for sensor-based lighting applications.

Measuring 400 × 40 × 22mm, the SN-240-24-G1NF features an ultra-thin housing with a clamshell-style case and wire-clamping structure for convenient installation. It also incorporates overvoltage, overload, short-circuit and over-temperature protection, together with flicker-free IEEE 1789 performance and a 5-year manufacturer warranty.
