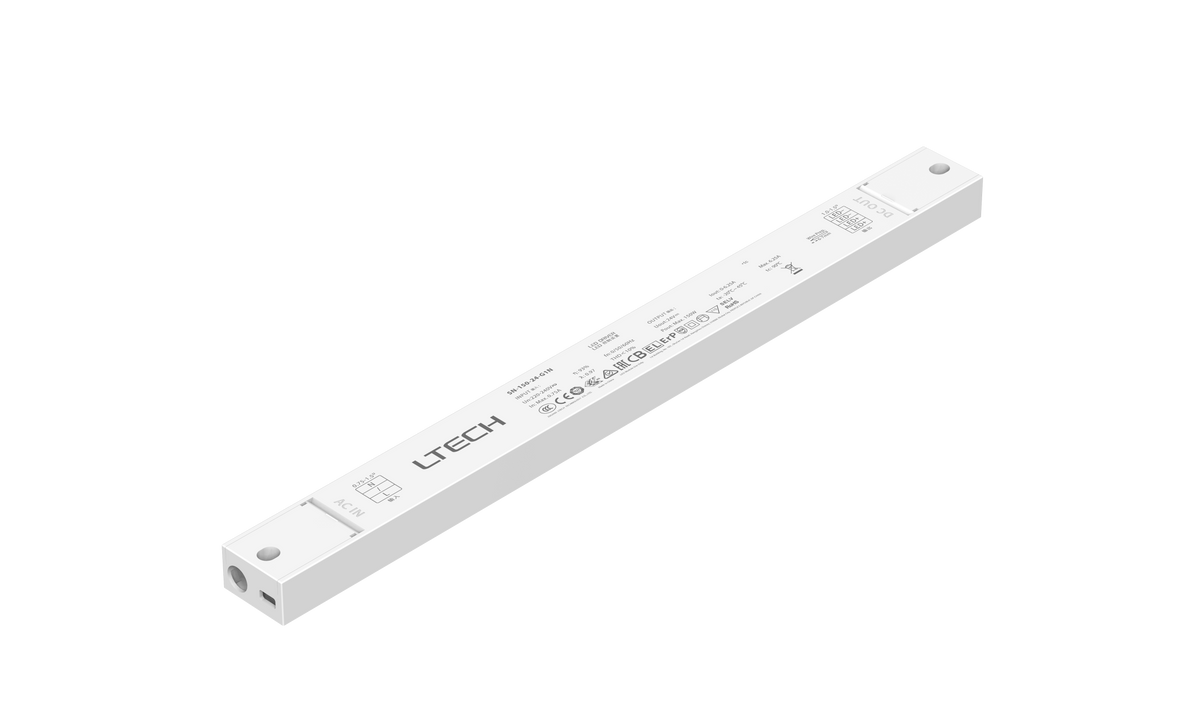

LTECH SN-150-24-G1N 150W 24V Constant Voltage LED Driver

Ultra-Slim Non-Dimmable LED Driver for Professional Indoor Lighting

The LTECH SN-150-24-G1N is a high-output constant-voltage LED driver designed for professional indoor lighting applications. Providing a regulated 24V DC output with a maximum current of 6.25A and up to 150W output power, it is suitable for compatible LED strip lighting and other 24V LED luminaires used in office, decorative and commercial installations.

Operating from a 220–240V AC mains supply, the SN-150-24-G1N delivers 93% typical efficiency, with a power factor greater than 0.97 and THD below 10% at full load. The driver features isolated constant-voltage output, Class II construction and an IP20 rating for professional indoor lighting applications.

The driver incorporates overload, overvoltage, short-circuit and over-temperature protection for dependable operation. Overload, short-circuit and thermal fault conditions recover automatically, while intelligent thermal management helps protect the driver and support long-term reliability. It also meets IEEE 1789 flicker performance requirements.

Measuring 350 × 30 × 18mm, the SN-150-24-G1N features an ultra-thin housing with a clamshell-style case and wire-clamping structure for convenient installation. Its slim profile, flicker-free performance and 5-year manufacturer warranty make it a practical solution for higher-power 24V LED lighting projects where installation space is limited.
