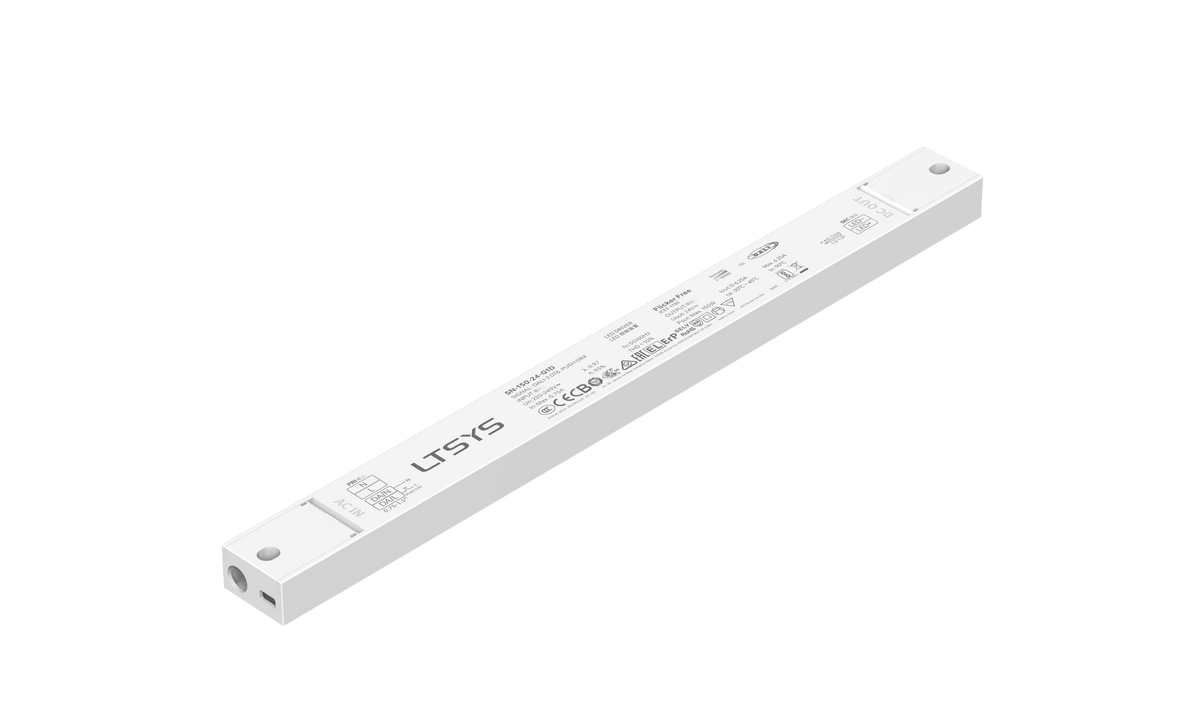

LTECH SN-150-24-G1D 150W 24V DALI-2 Constant Voltage LED Driver

Ultra-Slim DALI-2 DT6 and Push DIM Driver for Professional Indoor Lighting

The LTECH SN-150-24-G1D is a high-output constant-voltage LED driver designed for professional indoor lighting applications. Providing a regulated 24V DC output with a maximum current of 6.25A and up to 150W output power, it is suitable for compatible LED strip lighting, magnetic track lighting and other 24V LED luminaires.

Operating from a 220–240V AC mains supply, the SN-150-24-G1D delivers 93% typical efficiency, with a power factor greater than 0.97 and THD below 10% at full load. The driver supports DALI-2 DT6 and Push DIM control, with smooth dimming from 0–100% down to 0.01% for precise light-level adjustment.

The driver incorporates overload, overvoltage, short-circuit and over-temperature protection with automatic recovery, helping provide dependable operation in professional installations. It also features flicker-free dimming across the full 0–100% range and meets IEEE 1789 high-frequency exemption requirements.

Measuring 350 × 30 × 18mm, the SN-150-24-G1D features an ultra-thin housing with an integrated clamshell design for straightforward installation. Its slim profile, DALI-2 and Push DIM compatibility, Class II construction, IP20 rating and 5-year manufacturer warranty make it a versatile choice for commercial, architectural and professional LED lighting projects.
