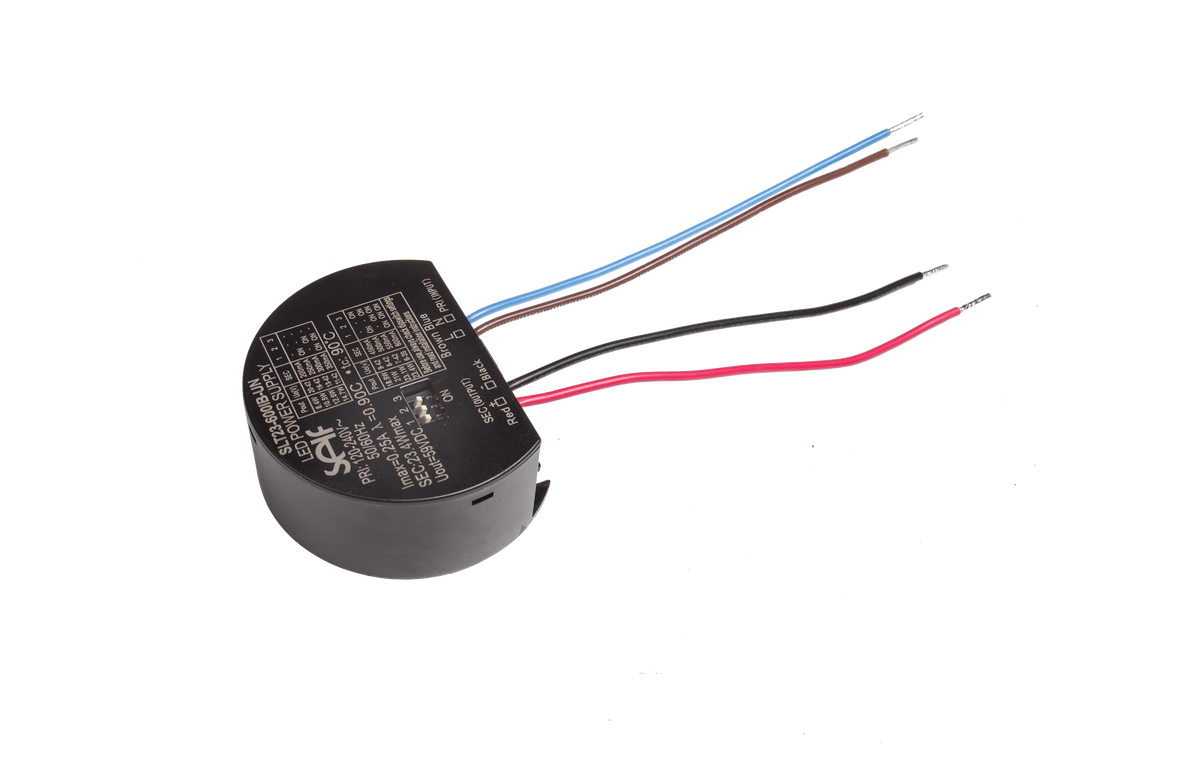

SELF SLT23-600IB-UN 23.4W Non-Dimmable Constant Current LED Driver

Compact DIP-Switch Adjustable LED Driver for Professional Track Lighting

The SELF SLT23-600IB-UN is a compact 23.4W constant-current LED driver designed for reliable and efficient indoor lighting applications. Featuring a circular housing and selectable output current, it is particularly suited to built-in installation within LED track lights, spotlights and other compact luminaires used in retail, hospitality, office and commercial environments.

Operating from a 120–240V AC input, the driver offers eight DIP-switch selectable output currents from 200mA to 600mA. Its regulated output voltage ranges from 6–42V DC, depending on the selected current, with a maximum output power of 23.4W. A typical full-load efficiency of 85%, low output ripple and power factor correction support efficient lighting performance.

The SLT23-600IB-UN is a non-dimmable constant-current driver, providing stable illumination without requiring an external lighting control system. Its integrated DIP switch allows installers to configure the appropriate fixed output current for compatible LED modules. Built-in open-circuit, short-circuit and overload protection help safeguard the driver during electrical faults.

Designed specifically for built-in luminaire installation, the driver features Class II construction, SELV output and IP20 protection. Its compact black housing measures just 64mm in diameter and 27mm in height, making it suitable for space-restricted fittings. With a nominal lifetime of 50,000 hours under specified operating conditions and a 5-year manufacturer warranty, it provides a practical solution for professional LED lighting installations.
