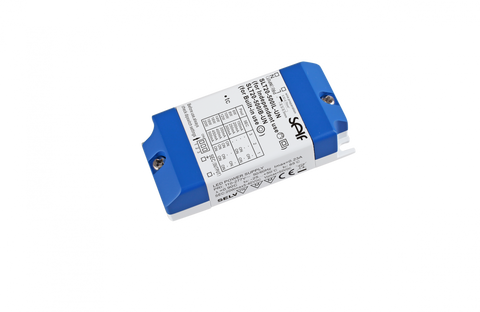

SLT20-500IB-UN

SELF Constant Current LED Driver

This compact constant current power supply with 110-277Vac input voltage is highly efficient with extremely low power loss.
Designed to give high power with low output ripple, it can be used either built-in or independently. The output current can be set every 50mA from 150mA to 500mA by using the DIP switch.
It conforms to SELV standard and the built-in protection circuit will shut down the converter in case of faults such as: open circuit, short circuit, over load, over temperature. The power supply will restart automatically after the fault has been corrected.

• Multipower driver with dip-switch for selectable output current
• Class II protection
• Driver for built-in or independent use
• Suitable for lighting equipment protection class I and II
• Active Power Factor Corrector
• SELV output (<60V)
• Flicker Free
• Open circuit, short circuit, over load and over temperature protection
• Auto restart after fault conditions removed
• Warranty: 5 years
• IP20
