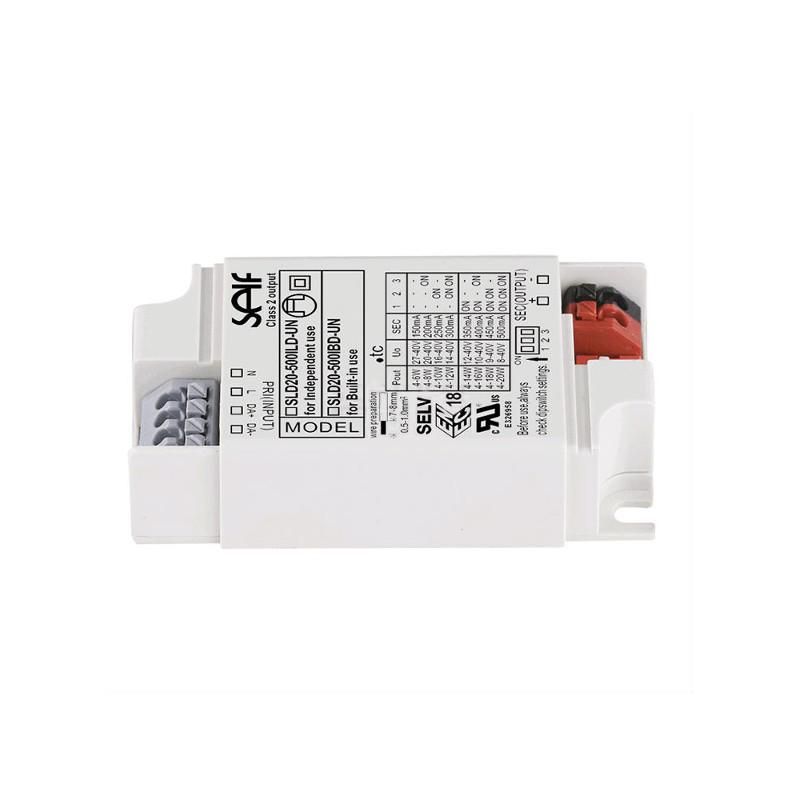

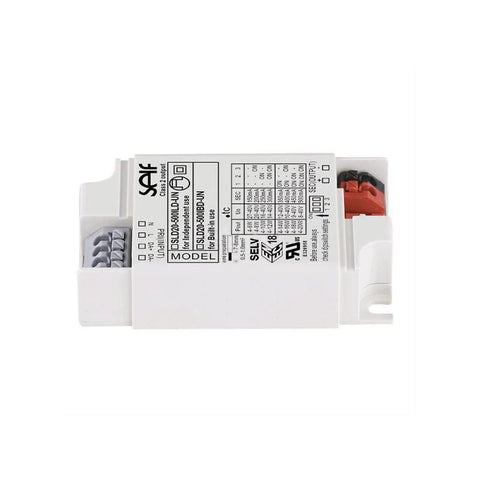

SELF 20W 100mA Constant Current LED Driver SLD20-500IBD-UN | DALI Dimmable

Name: SELF 20W 100mA Constant Current LED Driver SLD20-500IBD-UN | DALI Dimmable
Brand: SELF Electronics
SKU: SLD20-500IBD-UN
Price: 36.61 GBP
Availability: InStock

In stock Held in UK stock and available for normal dispatch.

£36.61

Shipping calculated at checkout.

SLD20-500IBD-UN

Constant Current Dali Dimmable

Independent or built-in power supply for constant current LED lamp
Multipower driver supplied with dip-switch for the selection of the output current from 150-500mA
Class II protection
1-100% dimming range by DALI2 or high voltage push dimming
Universal input voltage from 110-277V
Push-in terminal block for quick connection
Suitable for both Class I and Class II luminaires
Ripple free in all dimming ranges
Start-up time ≤0.5S
Open circuit, short circuit, over load and over temperature protection
Auto restart after fault conditions removed
Warranty: 5 Years

SELF 20W 100mA Constant Current LED Driver SLD20-500IBD-UN | DALI Dimmable

£36.61

Technical information

Product specification overview

Brand SELF Electronics

SKU / MPN SLD20-500IBD-UN

Availability In stock

Control type DALI

Output type Constant Current

Technical guidance

Please confirm output type, wattage, voltage/current, dimming protocol and installation conditions before ordering. If you are unsure whether this product is suitable, our team can help check compatibility.

Need help choosing this product?

Send us your LED load, dimming requirement and installation details and we’ll help confirm the right driver or control option.

Find my driver Download data sheet Contact technical support →
