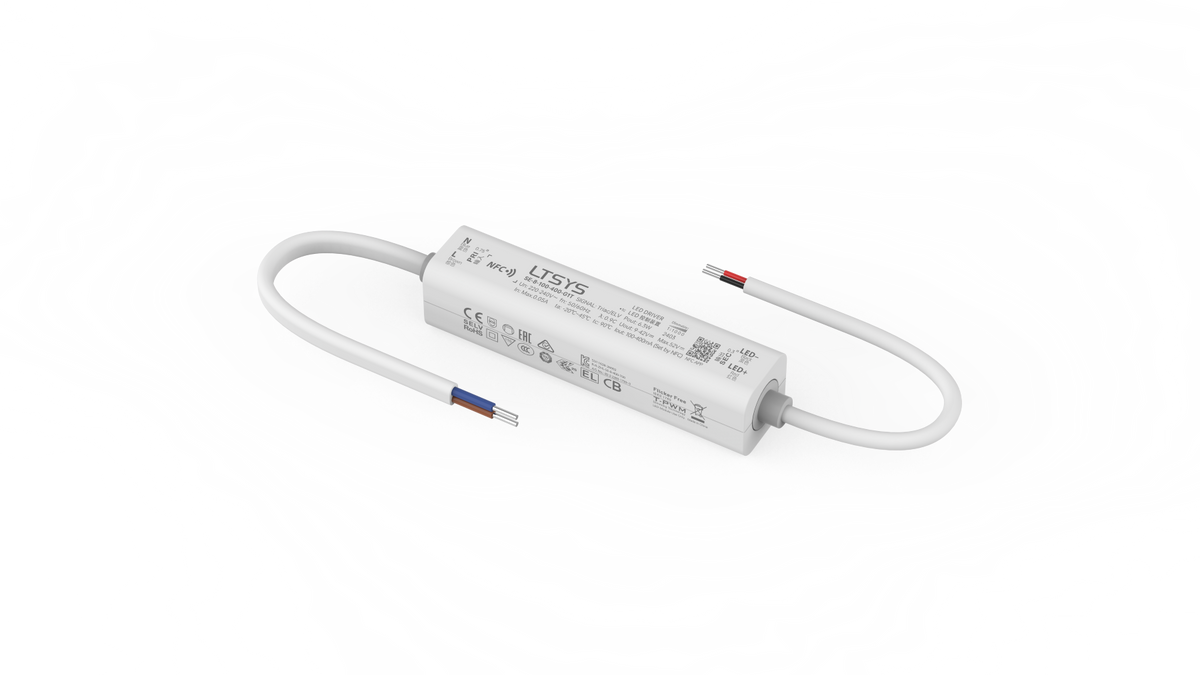

LTECH SE-8-100-400-G1T 6.3W 100–400mA TRIAC/ELV Dimmable LED Driver

NFC Programmable Constant Current Driver with Leading and Trailing Edge Dimming

The LTECH SE-8-100-400-G1T is a compact constant-current LED driver designed for smooth phase-cut dimming of low-power LED lighting. Its output current can be adjusted from 100mA to 400mA, providing flexible compatibility with a wide range of LED modules used in residential, hospitality, retail and architectural lighting applications. SE-8-100-400-G1T (1)

Supporting both leading-edge TRIAC and trailing-edge ELV dimming, the driver provides smooth 0–100% dimming down to 0.1%. T-PWM technology delivers flicker-free performance, while soft-on and fade-in operation helps provide comfortable and stable low-level lighting control. SE-8-100-400-G1T (1)

NFC programming allows the output current to be configured in 1mA steps across the 100–400mA range using the LTECH NFC Lighting app. Minimum brightness, power-on fading time and other operating parameters can also be adjusted, allowing convenient commissioning without opening the driver. SE-8-100-400-G1T (1) SE-8-100-400-G1T (1)

Operating from a 220–240V AC input, the SE-8-100-400-G1T supports constant-current LED loads with output power up to 6.3W. Its ultra-compact 84 × 20 × 20mm housing, IP50 rating and Class II construction make it particularly suitable for space-restricted installations, while overheat, over-voltage, overload and short-circuit protection support reliable professional operation.
