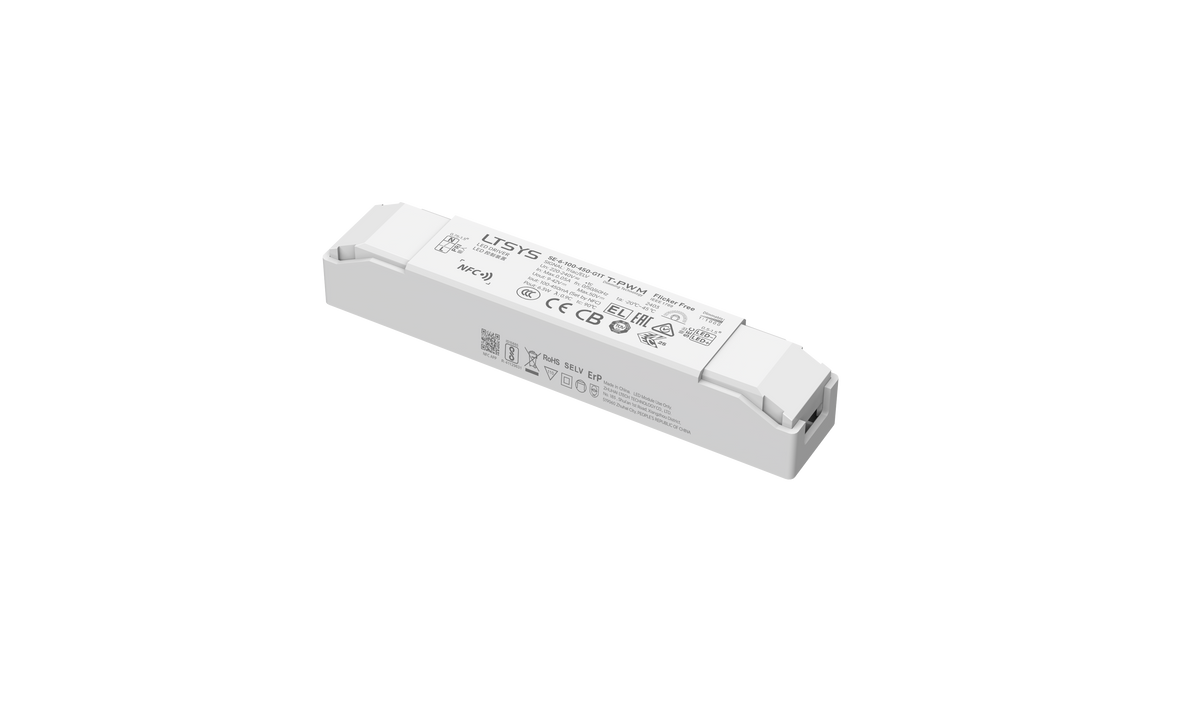

LTECH SE-6-100-450-G1T 6.3W 100–450mA TRIAC/ELV Dimmable LED Driver

NFC Programmable Constant Current Driver with Leading and Trailing Edge Dimming

The LTECH SE-6-100-450-G1T is a compact constant-current LED driver designed for smooth phase-cut dimming of low-power LED lighting. Its output current is adjustable from 100mA to 450mA, providing flexible compatibility with a wide range of LED modules used in residential, hospitality, retail and architectural lighting applications. SE-6-100-450-G1T

Supporting both leading-edge TRIAC and trailing-edge ELV dimming, the driver provides smooth 0–100% dimming down to 0.1%. T-PWM technology delivers flicker-free performance, while soft-on and fade-in operation help provide comfortable low-level lighting control. SE-6-100-450-G1T

NFC programming allows the output current to be adjusted in 1mA steps across the 100–450mA range using the LTECH NFC Lighting app. Minimum brightness, power transition time and other parameters can also be configured, making commissioning quick and flexible without opening the driver. SE-6-100-450-G1T SE-6-100-450-G1T

Operating from a 220–240V AC input, the SE-6-100-450-G1T supports a 9–42V DC output range and delivers up to 6.3W. Its slim 119 × 22 × 20mm housing, Class II construction and IP20 protection make it easy to integrate, while overheat, over-voltage, overload and short-circuit protection support reliable professional installations. SE-6-100-450-G1T SE-6-100-450-G1T
