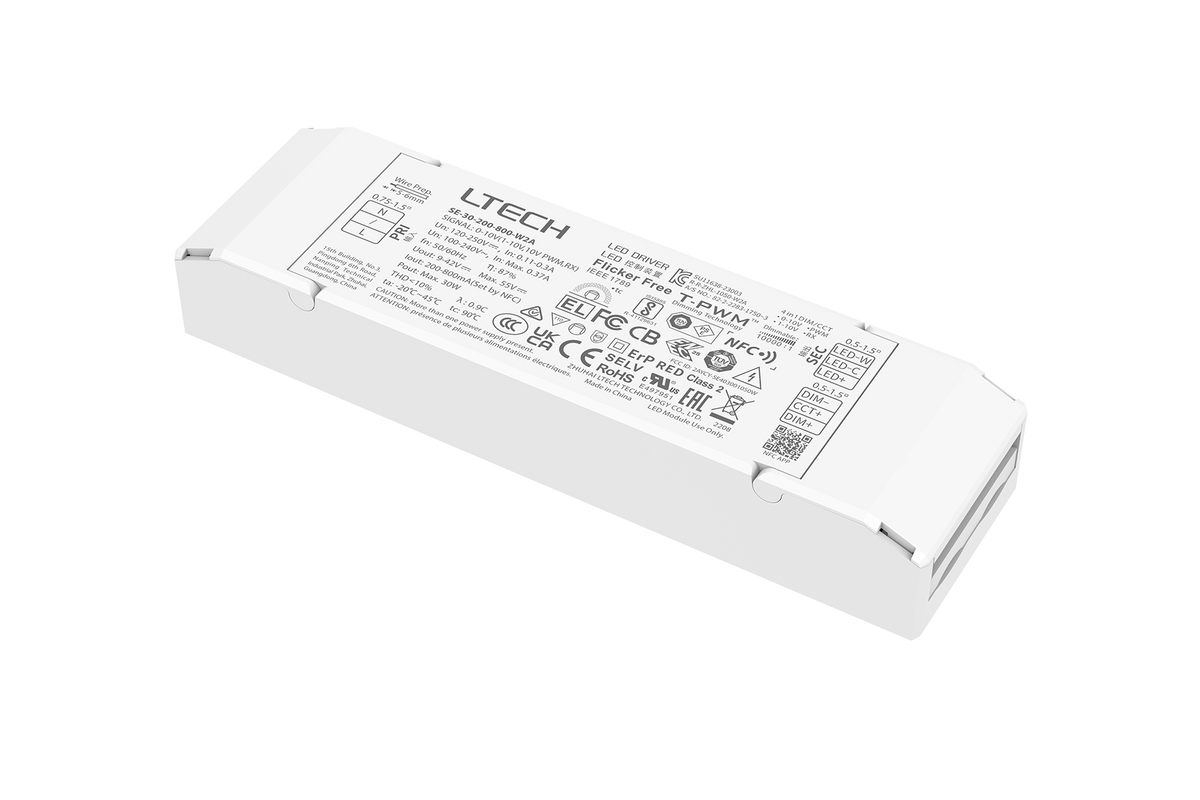

LTECH SE-30-200-800-W2A 30W 0/1–10V Tunable White LED Driver

200–800mA Constant Current Driver with DIM/CCT Control and NFC Programming

The LTECH SE-30-200-800-W2A is a compact 30W constant-current LED driver designed specifically for tunable white lighting applications. With an adjustable output current from 200mA to 800mA and dedicated warm white and cool white channels, it is suitable for residential, hospitality, retail, commercial and architectural lighting installations.

Supporting 0–10V, 1–10V, 10V PWM and resistance control, the driver allows smooth adjustment of both brightness and colour temperature. Brightness and CCT can be controlled independently or simultaneously, while T-PWM technology provides flicker-free dimming from 0–100% down to 0.01%.

Operating from a wide 100–240V AC input, the SE-30-200-800-W2A provides a constant-current output with an operating voltage range up to 42V DC and a maximum output power of 30W. NFC programming allows the output current, dimming mode and other operating parameters to be configured in 1mA steps using a compatible smartphone and the LTECH NFC Lighting app.

Compact and easy to integrate, the driver features a slim screwless housing together with over-temperature, over-voltage, overload and short-circuit protection. Its constant-power tunable white design, deep dimming capability, flicker-free performance and 5-year manufacturer warranty make it a dependable solution for professional CCT lighting systems.
