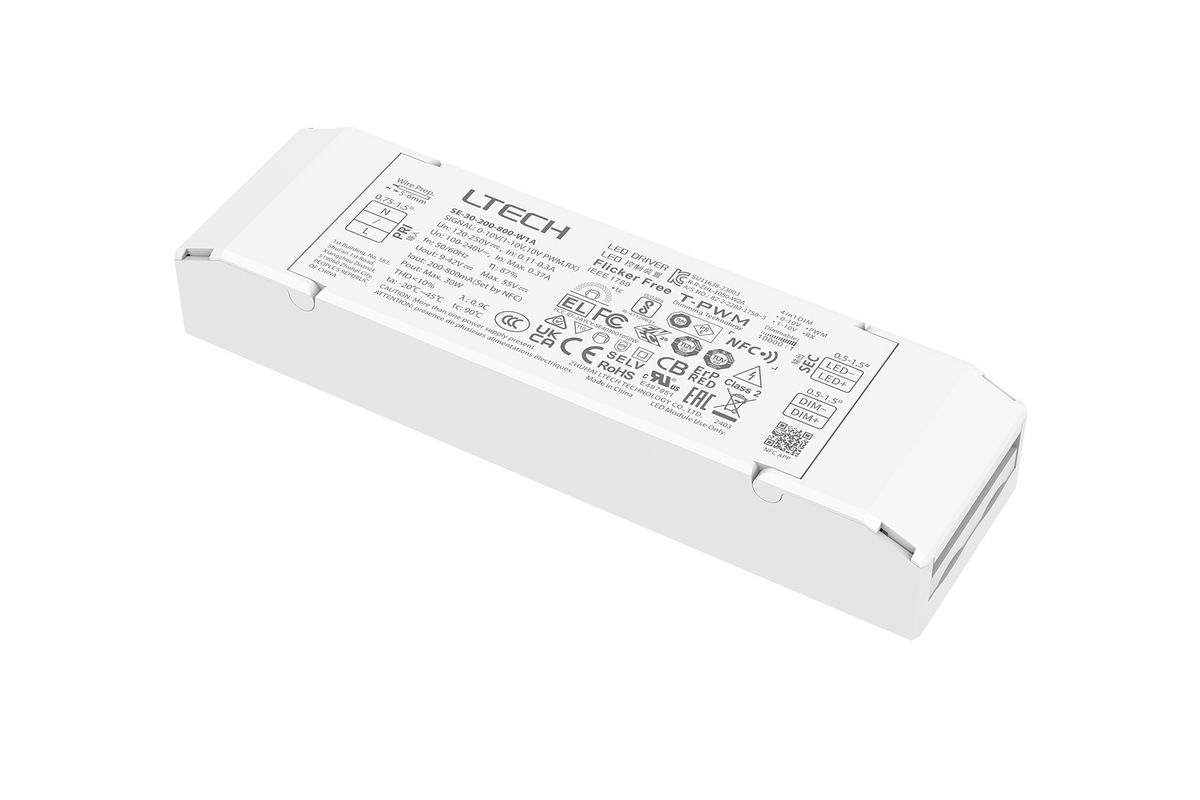

LTECH LTSYS SE-30-200-800-W1A 30W 0/1–10V Dimmable LED Driver

200–800mA Constant Current Driver with NFC Programming

The LTECH LTSYS SE-30-200-800-W1A is a compact 30W constant-current LED driver designed for professional indoor lighting applications. With an adjustable output current from 200mA to 800mA, it provides flexible compatibility with a wide range of LED modules used in retail, hospitality, commercial and architectural lighting installations.

Supporting 0–10V, 1–10V, 10V PWM and resistance dimming, the driver provides smooth and flicker-free brightness control from 0–100%, with dimming down to 0.01%. NFC programming allows the output current, dimming mode and other operating parameters to be configured quickly using a compatible smartphone and the LTECH NFC Lighting app.

Operating from a wide 100–240V AC input, the SE-30-200-800-W1A provides a constant-current output with an operating voltage range up to 42V DC and a maximum output power of 30W. Output current can be adjusted in 1mA steps, allowing precise matching to compatible LED modules and greater flexibility during commissioning.

Compact and easy to integrate, the driver features a slim screwless housing together with over-temperature, over-voltage, overload and short-circuit protection. Its flexible current adjustment, deep dimming capability, flicker-free performance and 5-year manufacturer warranty make it a dependable solution for professional constant-current LED lighting systems.
