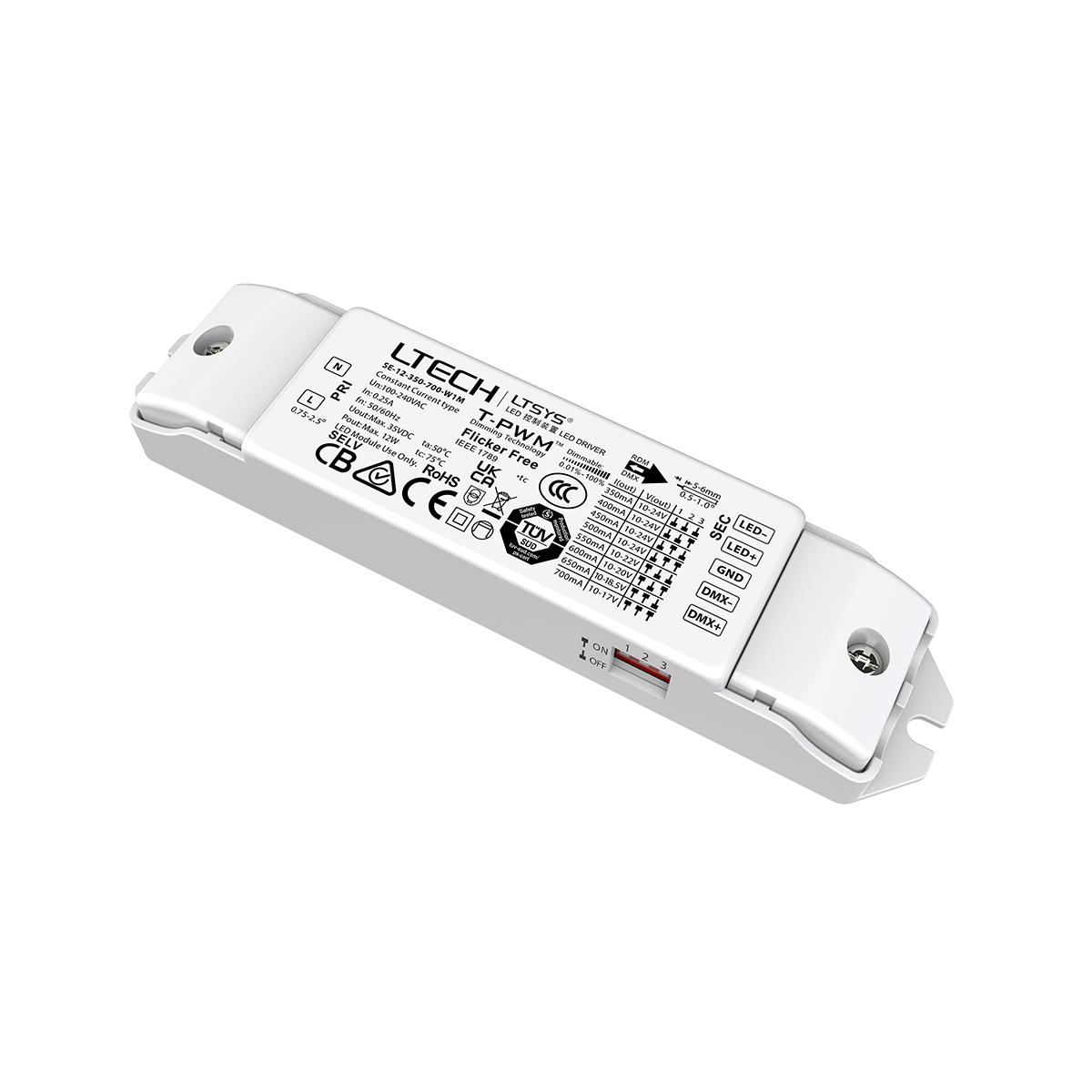

LTECH LTSYS SE-12-350-700-W1M 12W DMX512/RDM Dimmable LED Driver

350–700mA Constant Current Driver with RDM Addressing and DIP-Switch Current Selection

The LTECH LTSYS SE-12-350-700-W1M is a compact 12W constant-current LED driver designed for professional DMX-controlled lighting applications. With an adjustable output current from 350mA to 700mA, it provides flexible compatibility with a range of LED modules used in retail, hospitality, commercial and architectural lighting installations.

Supporting DMX512 and RDM control, the driver provides precise digital dimming from 0–100%, with LED output starting from 0.01%. RDM remote device management allows the DMX address and other device information to be accessed using compatible RDM equipment, helping simplify commissioning in larger lighting installations.

Operating from a wide 100–240V AC input, the SE-12-350-700-W1M provides a 10–24V DC output with a maximum output power of 12W. An integrated DIP switch allows quick selection of eight output currents from 350mA to 700mA, enabling the driver to be matched easily to compatible constant-current LED modules.

Compact and easy to integrate, the driver features flicker-free T-PWM dimming together with soft-on and fade-in functionality for smooth lighting transitions. Integrated over-temperature, overload and short-circuit protection, a rated service life of up to 50,000 hours and a 5-year manufacturer warranty make it a practical solution for professional DMX constant-current lighting systems.
