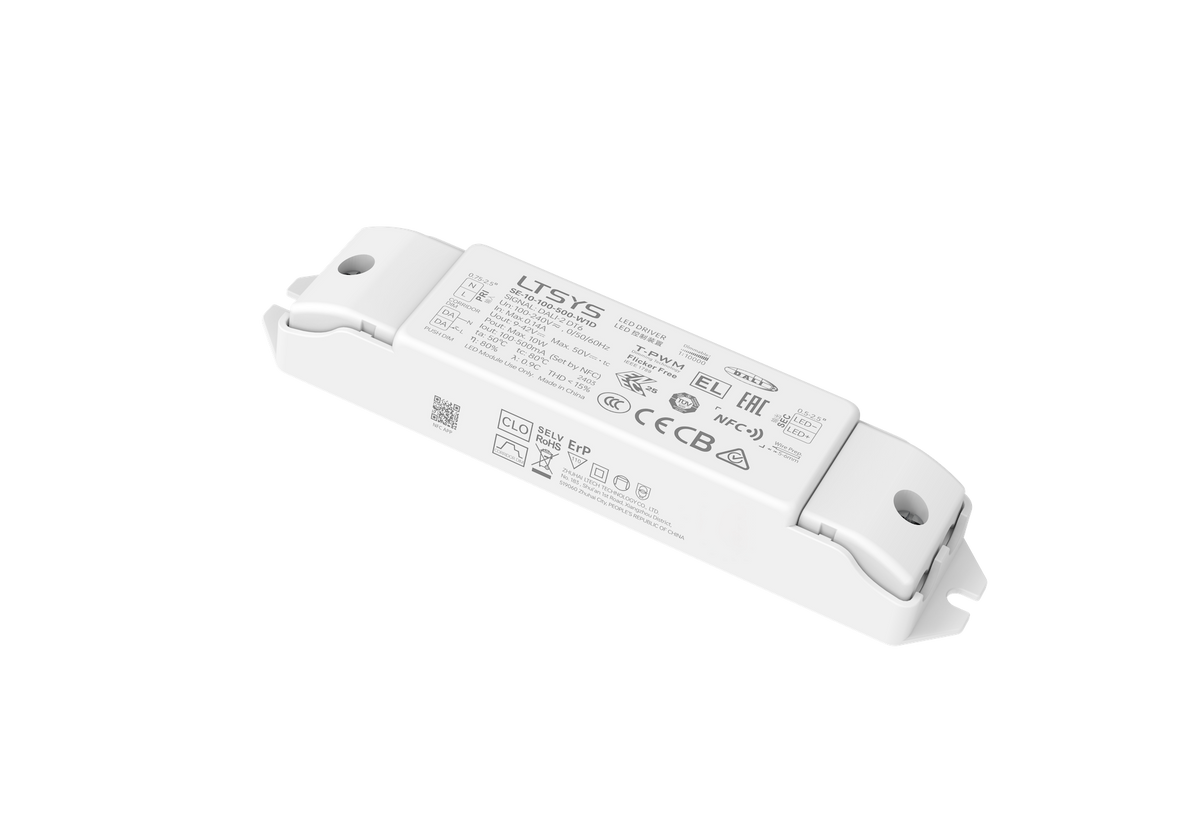

LTECH SE-10-100-500-W1D 10W DALI-2 Constant Current LED Driver

100–500mA DALI-2 DT6 Driver with Push DIM and NFC Programming

The LTECH SE-10-100-500-W1D is a compact 10W constant-current LED driver designed for professional indoor lighting applications. With an adjustable output current from 100mA to 500mA, a 9–42V DC output range and up to 10W output power, it provides flexible compatibility with a wide range of constant-current LED modules.

Supporting DALI-2 DT6 and Push DIM control, the driver provides smooth dimming from 0–100% down to 0.01%. LTECH T-PWM ultra-deep dimming technology delivers flicker-free performance across the dimming range, while soft-on and fade-in functions help provide comfortable lighting transitions. Corridor lighting control is also supported for sensor-based and energy-efficient applications.

Integrated NFC programming allows the output current to be adjusted in precise 1mA steps using the LTECH NFC Lighting app. Parameters including the DALI address, dimming curve, brightness range and other operating settings can be configured, while advanced DALI templates support groups and scenes. CLO light-decay compensation is also available to help maintain consistent illumination over the lifetime of the LED.

Operating from a wide 100–240V AC input, the SE-10-100-500-W1D includes overheat, over-voltage, overload and short-circuit protection with automatic recovery. Its compact Class II and IP20 construction, low standby consumption, 100,000-hour typical service life and 5-year manufacturer warranty make it a dependable solution for professional constant-current LED lighting systems.
