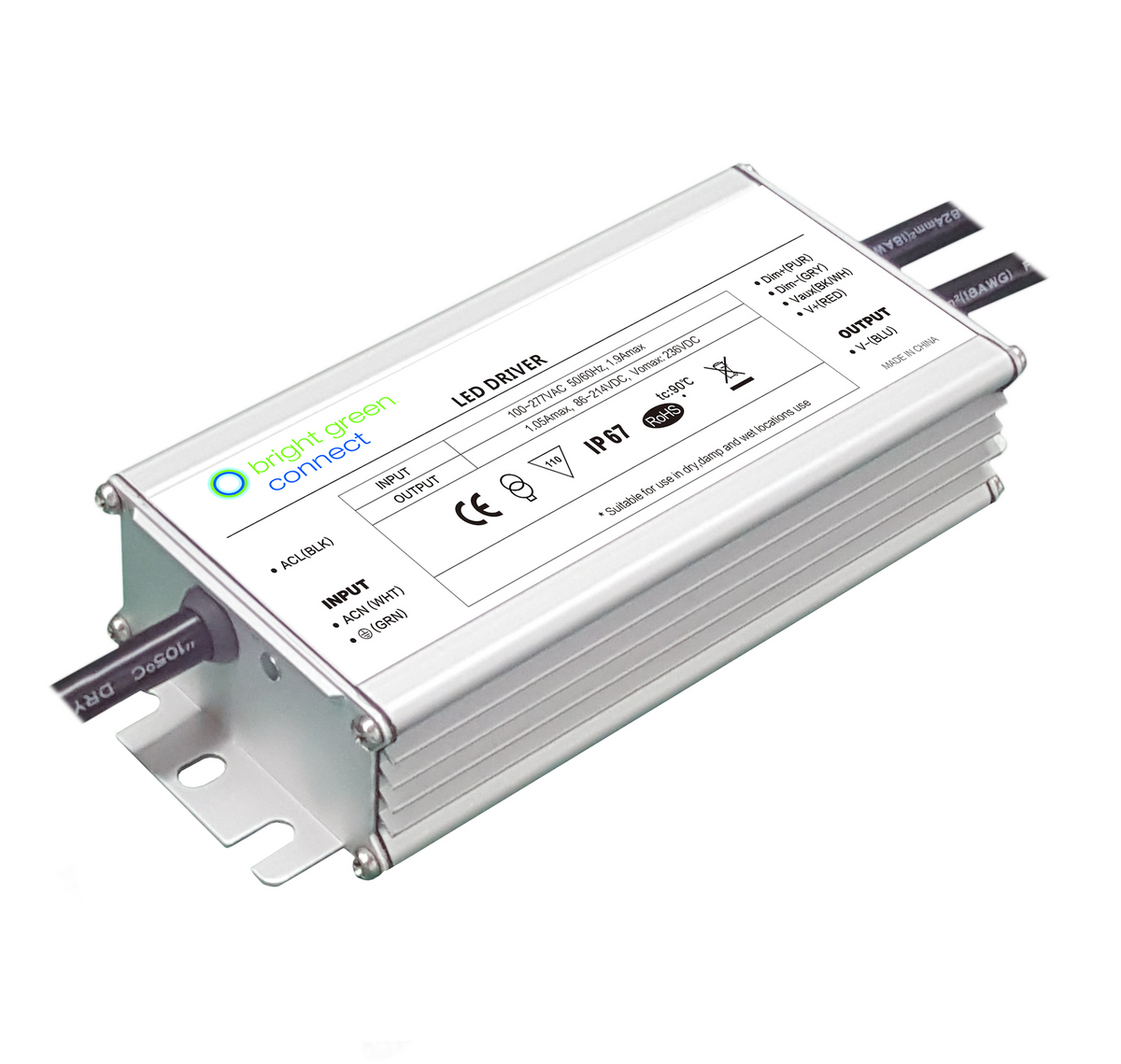

Bright Green Connect PXS-120-V024-D 120W 24V 0–10V Dimmable Constant Voltage LED Driver

IP67 0–10V Dimmable LED Driver for Professional Indoor and Outdoor Lighting

The Bright Green Connect PXS-120-V024-D is a high-performance 120W constant-voltage LED driver designed for reliable and flexible professional lighting applications. Featuring 0–10V dimming control and a regulated 24V DC output, it is ideal for compatible LED strips, architectural lighting, decorative installations and commercial lighting systems requiring smooth and precise brightness adjustment.

Operating from a wide 90–305V AC or 127–420V DC input, the driver delivers a regulated 24V DC output with a maximum rated power of 120W and an output current of up to 5A. Its power factor of greater than 0.90 at 60–100% load supports efficient operation, while low total harmonic distortion helps maintain dependable electrical performance across demanding lighting installations.

The PXS-120-V024-D supports 0–10V dimming from 2–100%, providing smooth, flicker-free brightness adjustment through compatible lighting controllers. Its high-frequency PWM output supports consistent illumination, while dim-off functionality offers additional lighting control flexibility. Integrated short-circuit, over-current and over-temperature protection helps safeguard connected LED equipment, with 10kV line-to-ground surge protection providing additional electrical resilience.

Designed for professional indoor and outdoor environments, the driver features a robust IP67-rated enclosure and an operating temperature range of -40°C to +70°C. Its durable housing is suitable for demanding installations where environmental protection is essential. With a rated lifetime of at least 100,000 hours at a 75°C case temperature, CB, ENEC and CCC certifications, and a 7-year warranty under specified conditions, it provides a dependable solution for professional 24V dimmable LED lighting systems.
