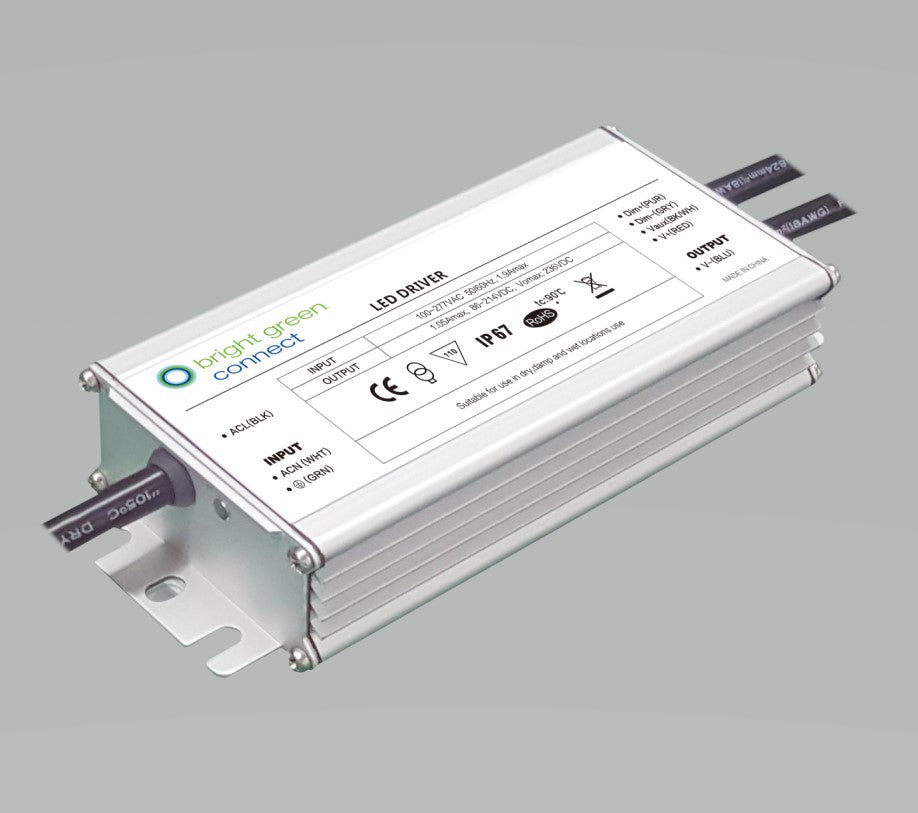

Bright Green Connect 150W 300mA Constant Voltage LED Driver PXS-150-V024 | DALI Dimmable

PXS-150-V024

The PXS Series product range has been designed with functionality and reliability at its core.  With market leading specifications and features, this series of products has been designed to offer optimum performance.

As well as a wide 90~305Vac input range, all models in the PXS Series come with advanced features such as 10kV surge immunity, 100,000 hrs lifetime, Dim-to-off functionality, high output current accuracy (+/- 2%) and 7 year warranty.  In addition, there is a range of options such as NFC Programmability, input Over Voltage Protection, 12Vaux output and control protocol options such as 0-10V, PWM, Timer Dimming, DALI & DMX.  This series represents the forefront of LED driver design.

• Supply Voltage: 90~305Vac or 127-420Vdc
• 10kV Surge Immunity
• PWM Output Frequency >1kHz
• 100,000 Hour Life @ Tc=75°C
• 7 Year Warranty @ Tc<=75°C
• 0-10V/PWM/DALI Dimmable
• 2% Minimum Dimming Output
• Dim Off with 0.5W Standby Power (Model Dependant)
• 12V 300mA Auxillary Power (Model Dependant)
• Input Over Voltage Protection (Optional)
• ENEC/CB/CCC SELV Output
• UL Class P Version Available
• Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
