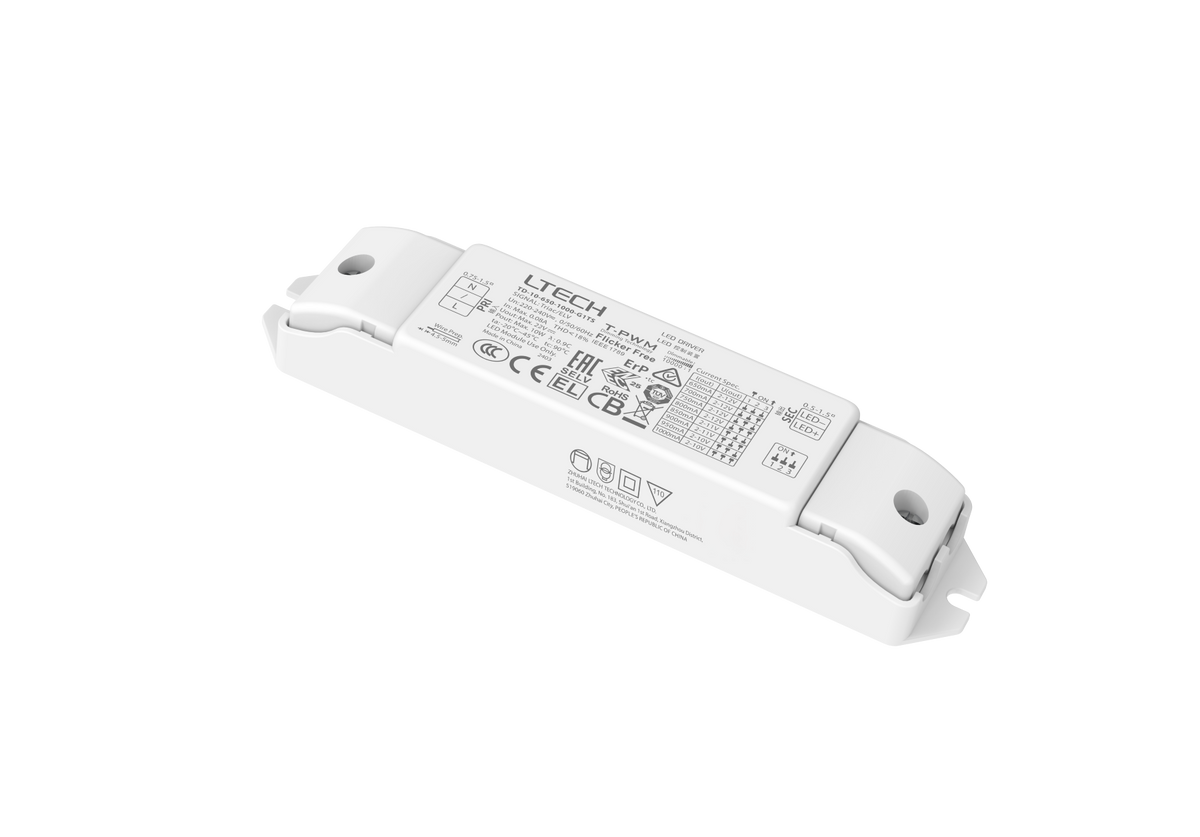

The LTECH TD-10-650-1000-G1TS is a compact constant-current LED driver designed for professional indoor lighting applications. Its output current can be selected from 650mA to 1000mA across eight DIP-switch settings, allowing the driver to be configured for a range of compatible LED modules with a maximum output power of 10W.

Operating from a 220–240V AC mains supply, the driver provides a 2–12V DC output range and an output power range of 1.3W to 10W. It supports both leading-edge TRIAC and trailing-edge ELV phase-cut dimming, with smooth adjustment from 0–100% down to 0.1% using LTECH T-PWM™ dimming technology.

The TD-10-650-1000-G1TS offers a power factor above 0.9 at full load, typical efficiency above 75% at 900mA and THD below 18% at full load. It also incorporates overload, short-circuit and over-temperature protection with automatic recovery, together with isolated Class II construction and an IP20 rating for indoor installations.

Measuring approximately 135 × 30 × 20mm, the driver features a small, lightweight flame-retardant housing for straightforward luminaire integration. Flicker-free performance, soft-on and fade-in operation, a rated lifetime of up to 50,000 hours and a 5-year manufacturer warranty make it a practical solution for dimmable indoor LED lighting.
