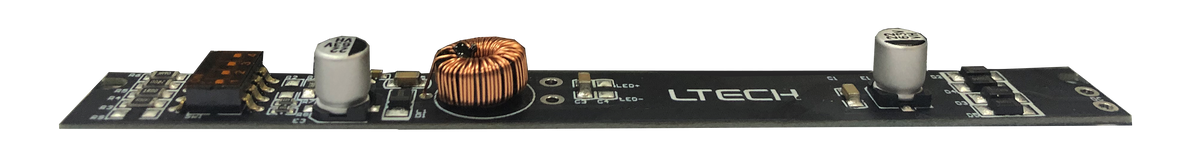

LTECH MT-100-800-D1N1 Non-Dimmable Constant Current LED Driver

100–800mA Driver for 48V Magnetic Track and Linear Lighting

The LTECH MT-100-800-D1N1 is a compact non-dimmable constant-current LED driver designed specifically for 48V magnetic track and linear lighting systems. Its slim PCB format is suitable for integration into compatible STUCCHI standard housings and other space-constrained luminaire designs.

Operating from a polarity-free 48V DC input, the driver provides an adjustable constant-current output from 100mA to 800mA. Output current is selected using the onboard DIP switches, allowing the driver to be matched to a wide range of compatible LED modules without requiring multiple fixed-current driver variants.

The MT-100-800-D1N1 provides an output voltage of 9–46V DC and delivers up to 36.8W of output power. With typical efficiency of 94%, flicker-free performance and quiet operation without high-frequency noise, it is well suited to professional retail, hospitality and architectural track lighting applications.

Compact and easy to integrate, the driver also includes overload, no-load and reverse-connection protection for dependable operation. Its flexible current selection, high efficiency and 5-year manufacturer warranty make it a practical solution for professional constant-current magnetic track lighting systems.
