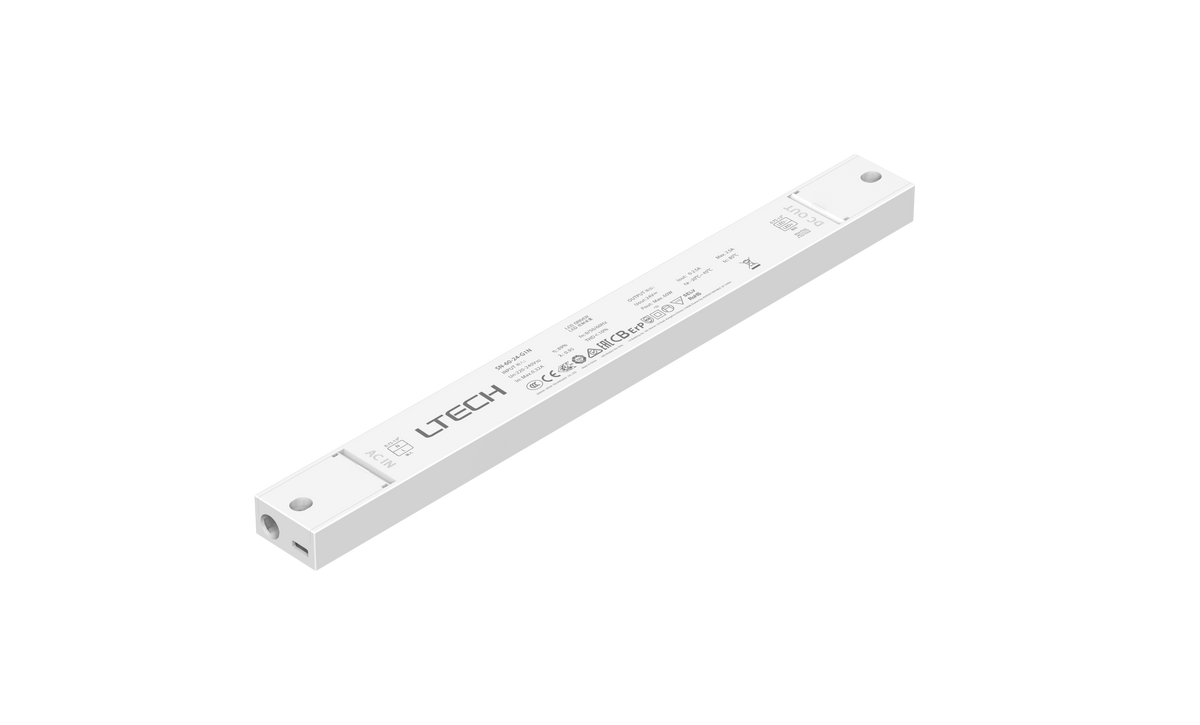

LTECH SN-60-24-G1N 60W 24V Constant Voltage LED Driver

Ultra-Slim Non-Dimmable LED Driver for Professional Indoor Lighting

The LTECH SN-60-24-G1N is a compact constant-voltage LED driver designed for professional indoor lighting applications. Providing a regulated 24V DC output with a maximum current of 2.5A and up to 60W output power, it is suitable for compatible LED strip lighting and other 24V LED luminaires.

Operating from a 220–240V AC mains supply, the SN-60-24-G1N offers typical efficiency of 89%, with a power factor greater than 0.95 and THD below 10% at full load. The driver is non-dimmable and features isolated Class II construction with an IP20 rating for indoor lighting installations.

The driver incorporates overload, overvoltage, short-circuit and over-temperature protection, helping provide dependable operation and automatic recovery from a range of fault conditions. It also meets IEEE 1789 flicker performance requirements and is designed for use in Class I, II and III indoor luminaires.

Measuring 300 × 30 × 17mm, the SN-60-24-G1N features an ultra-thin housing with a clamshell-style case and integrated wire-clamping structure for convenient installation. Its slim profile, flicker-free performance and 5-year manufacturer warranty make it a practical solution for office, decorative and commercial LED lighting projects.
