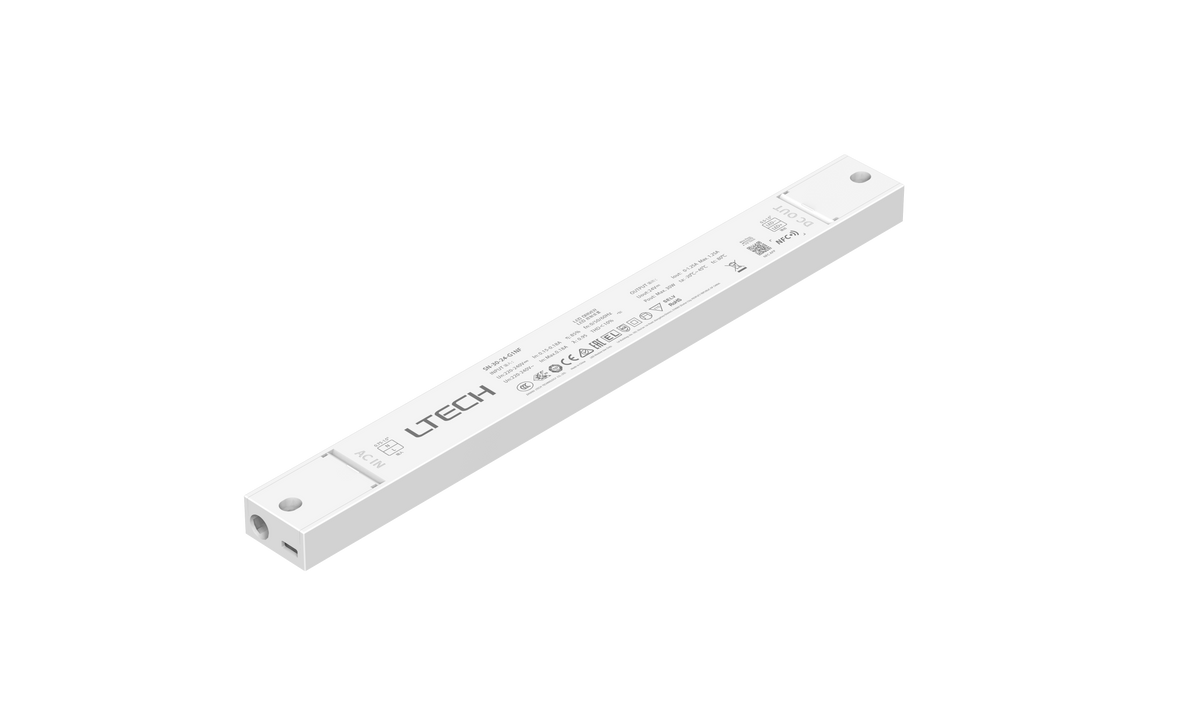

LTECH SN-30-24-G1NF 30W 24V NFC Programmable Constant Voltage LED Driver

Ultra-Slim Non-Dimmable LED Driver with NFC Parameter Programming

The LTECH SN-30-24-G1NF is a compact constant-voltage LED driver designed for professional indoor lighting applications. Providing a regulated 24V DC output with a maximum current of 1.25A and up to 30W output power, it is suitable for compatible LED strip lighting, magnetic track lighting and other 24V LED luminaires.

Operating from a 220–240V AC mains supply, the SN-30-24-G1NF delivers 85% typical efficiency, with a power factor greater than 0.95 and THD below 10% at full load. The driver features isolated constant-voltage output, Class II construction and an IP20 rating for indoor lighting installations.

NFC programming allows parameters including maximum brightness, power transition time and PWM frequency to be adjusted using the NFC Lighting app while the driver is powered off. The PWM frequency can be configured from 300Hz to 22kHz, while soft-on and fade-in functions help provide smoother light transitions.

Measuring 300 × 30 × 17mm, the SN-30-24-G1NF features an ultra-thin housing with an integrated clamshell wire connection design for straightforward installation. It also incorporates overvoltage, overload, short-circuit and over-temperature protection with automatic recovery, together with flicker-free performance and a 5-year manufacturer warranty.
