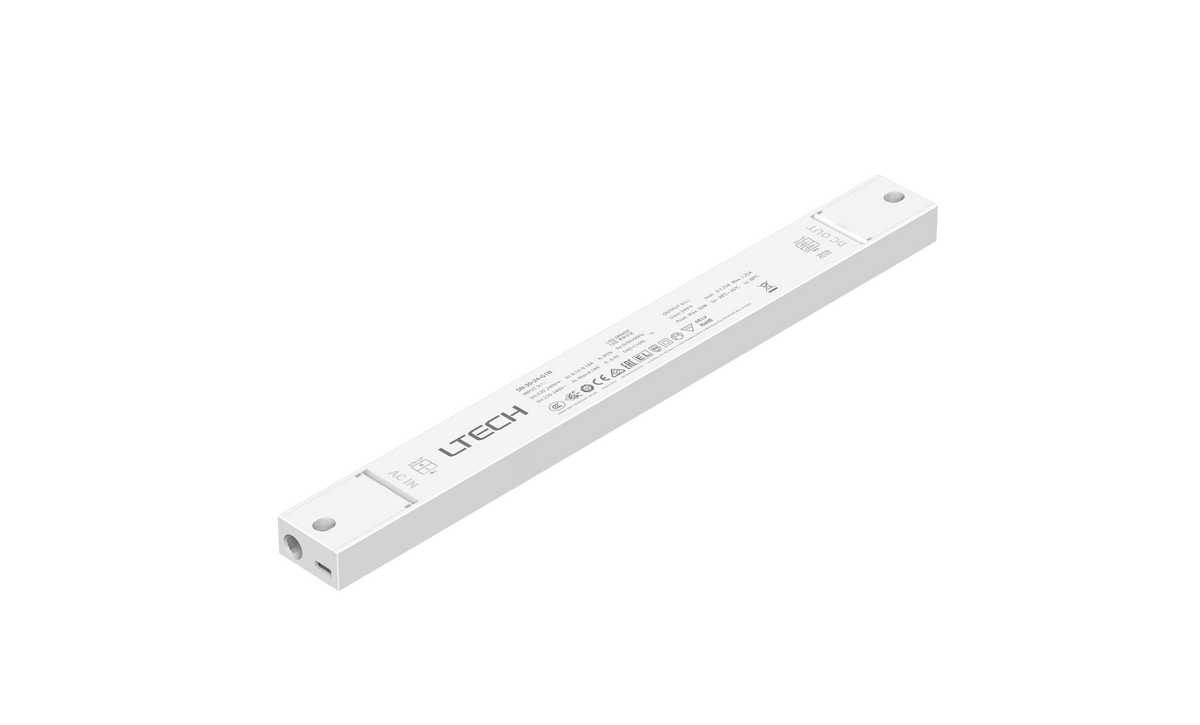

LTECH SN-30-24-G1N 30W 24V Constant Voltage LED Driver

Ultra-Slim Non-Dimmable LED Driver for Indoor LED Strip and Track Lighting

The LTECH SN-30-24-G1N is a compact constant-voltage LED driver designed for professional indoor lighting applications. Providing a regulated 24V DC output with a maximum current of 1.25A and up to 30W output power, it is suitable for compatible LED strip lighting, magnetic track lighting and other 24V LED luminaires.

Operating from a 220–240V AC mains supply, the SN-30-24-G1N offers typical efficiency of 85%, with a power factor greater than 0.95 and THD below 10% at full load. Its isolated Class II construction and IP20 rating make it suitable for integration into Class I, II and III indoor lighting fixtures.

The driver incorporates overvoltage, overload, short-circuit and over-temperature protection with automatic recovery, helping provide dependable operation in professional installations. It also features flicker-free performance to IEEE 1789 and intelligent thermal management designed to help protect driver life.

Measuring 300 × 30 × 17mm, the SN-30-24-G1N features an ultra-thin, narrow-profile housing with integrated screw terminals for straightforward installation. Its slim form factor, 5-year manufacturer warranty and suitability for indoor LED strip and magnetic track lighting make it a practical choice where installation space is limited.
