LTECH SN-150-24-G2D 150W 24V DALI-2 DT8 Tunable White LED Driver

Ultra-Slim DALI-2 and Push DIM/CCT Driver for Professional Indoor Lighting

The LTECH SN-150-24-G2D is a constant-voltage tunable white LED driver designed for professional indoor lighting applications. Providing a regulated 24V DC output with a maximum current of 6.25A and up to 150W output power, it is suitable for compatible dual-white LED strip, magnetic track lighting and other 24V tunable white luminaires.

Operating from a 220–240V AC mains supply, the SN-150-24-G2D delivers 93% typical efficiency, with a power factor greater than 0.97 and THD below 10% at full load. It supports DALI-2 DT8 and Push DIM/CCT control, with dimming from 0–100% down to 0.01% for precise brightness adjustment.

The driver supports both brightness and colour temperature control, with a default CCT range of 2700K to 6500K and a wider programmable DALI range of 1000K to 10000K. Its constant-power design helps maintain consistent brightness while adjusting colour temperature, and Push DIM/CCT provides simple local control with dimming memory.

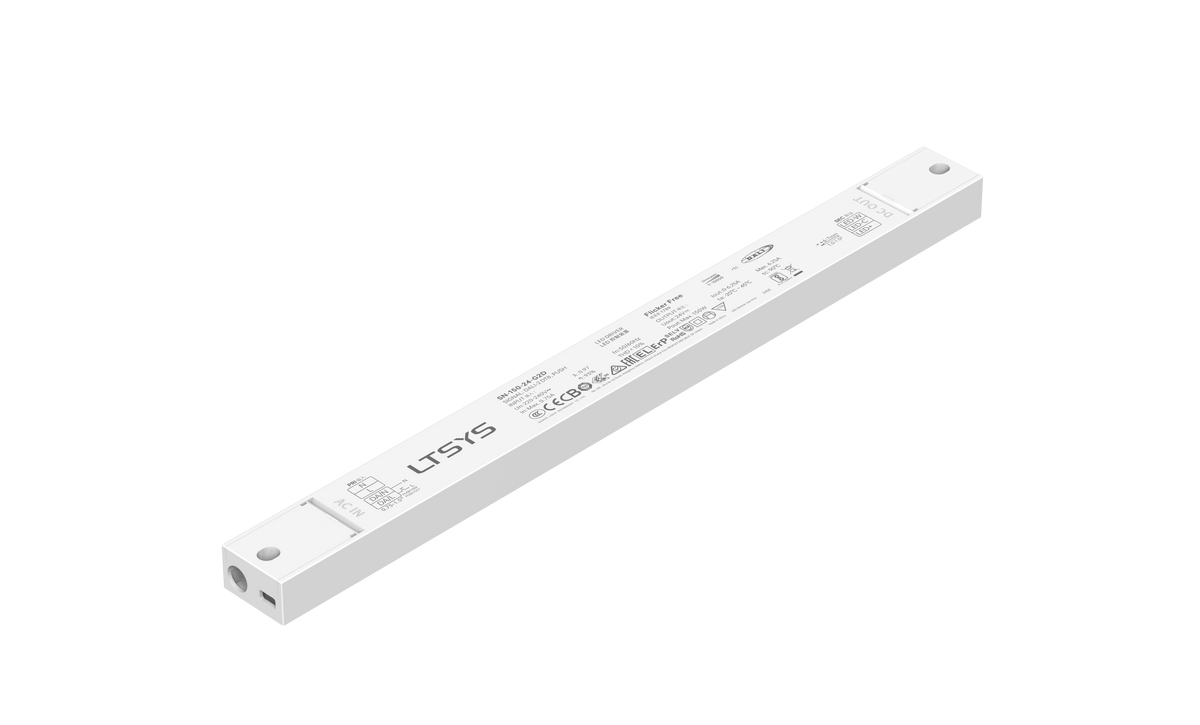

Measuring 350 × 30 × 18mm, the SN-150-24-G2D features an ultra-thin integrated clamshell housing for straightforward installation. It also incorporates overload, overvoltage, short-circuit and over-temperature protection with automatic recovery, together with Class II construction, IP20 protection, flicker-free performance and a 5-year manufacturer warranty.
