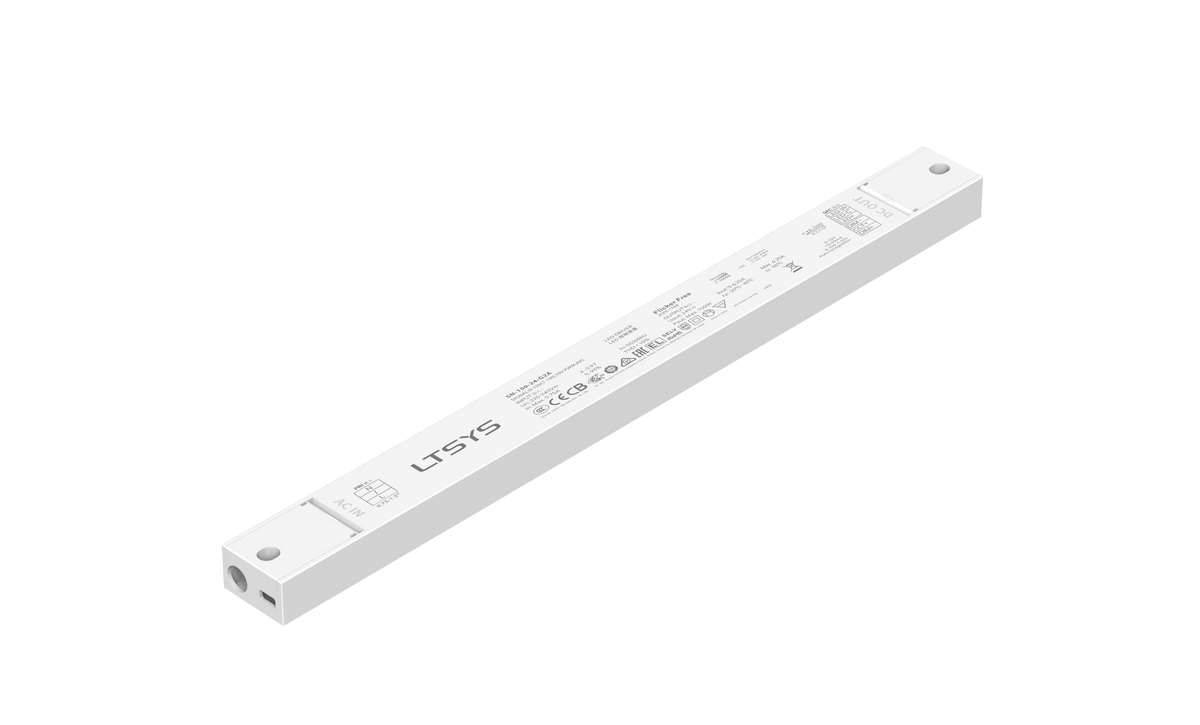

LTECH SN-150-24-G2A 150W 24V 0–10V Tunable White LED Driver

Ultra-Slim 0–10V Dimmable Driver with Brightness and CCT Control

The LTECH SN-150-24-G2A is a constant-voltage tunable white LED driver designed for professional indoor lighting applications. Providing a regulated 24V DC output with a maximum current of 6.25A and up to 150W output power, it is suitable for compatible dual-white LED strip and other tunable white 24V LED luminaires.

Operating from a 220–240V AC mains supply, the SN-150-24-G2A delivers 93% typical efficiency, with a power factor greater than 0.97 and THD below 10% at full load. It supports 4-in-1 control via 0–10V, 1–10V, 10V PWM and resistance input, with automatic recognition of 0–10V and 1–10V signals.

The driver supports both brightness and colour temperature control, with a CCT adjustment range of 2700K to 6500K. Its constant-power design helps maintain consistent brightness while adjusting colour temperature, while dimming is available from 0–100% down to 0.01% with flicker-free performance across the dimming range.

Measuring 350 × 30 × 18mm, the SN-150-24-G2A features an ultra-thin integrated clamshell housing for straightforward installation. It also incorporates overload, overvoltage, short-circuit and over-temperature protection with automatic recovery, together with Class II construction, IP20 protection and a 5-year manufacturer warranty.
