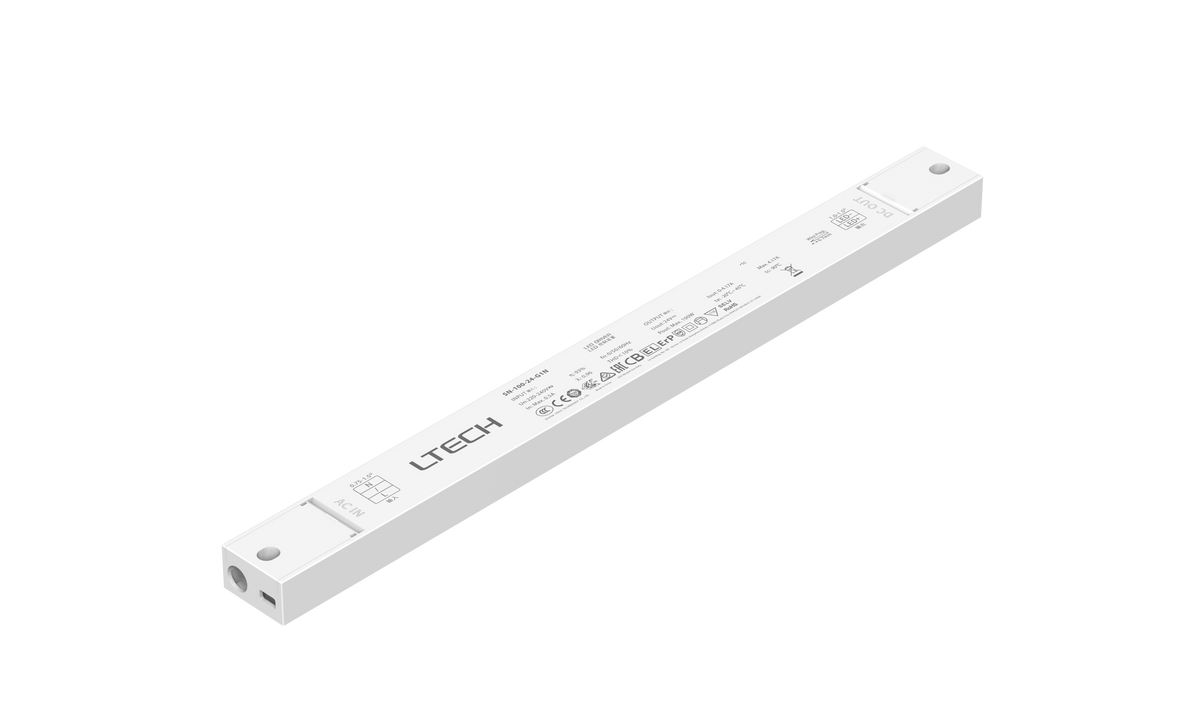

LTECH SN-100-24-G1N 100W 24V Constant Voltage LED Driver

Ultra-Slim Non-Dimmable LED Driver for Professional Indoor Lighting

The LTECH SN-100-24-G1N is a high-output constant-voltage LED driver designed for professional indoor lighting applications. Providing a regulated 24V DC output with a maximum current of 4.17A and up to 100W output power, it is suitable for compatible LED strip lighting and other 24V LED luminaires.

Operating from a 220–240V AC mains supply, the SN-100-24-G1N delivers 93% typical efficiency, with a power factor greater than 0.96 and THD below 10% at full load. The driver features isolated constant-voltage output, Class II construction and an IP20 rating for indoor lighting installations.

The driver incorporates overload, overvoltage, short-circuit and over-temperature protection for dependable operation. Overload, short-circuit and thermal fault conditions recover automatically, while overvoltage protection requires the supply to be re-powered after the fault condition has been removed. It also meets IEEE 1789 flicker performance requirements.

Measuring 350 × 30 × 18mm, the SN-100-24-G1N features an ultra-thin housing with a clamshell-style case and wire-clamping structure for convenient installation. Its slim profile, flicker-free performance and 5-year manufacturer warranty make it a practical solution for office, decorative and commercial LED lighting projects.
