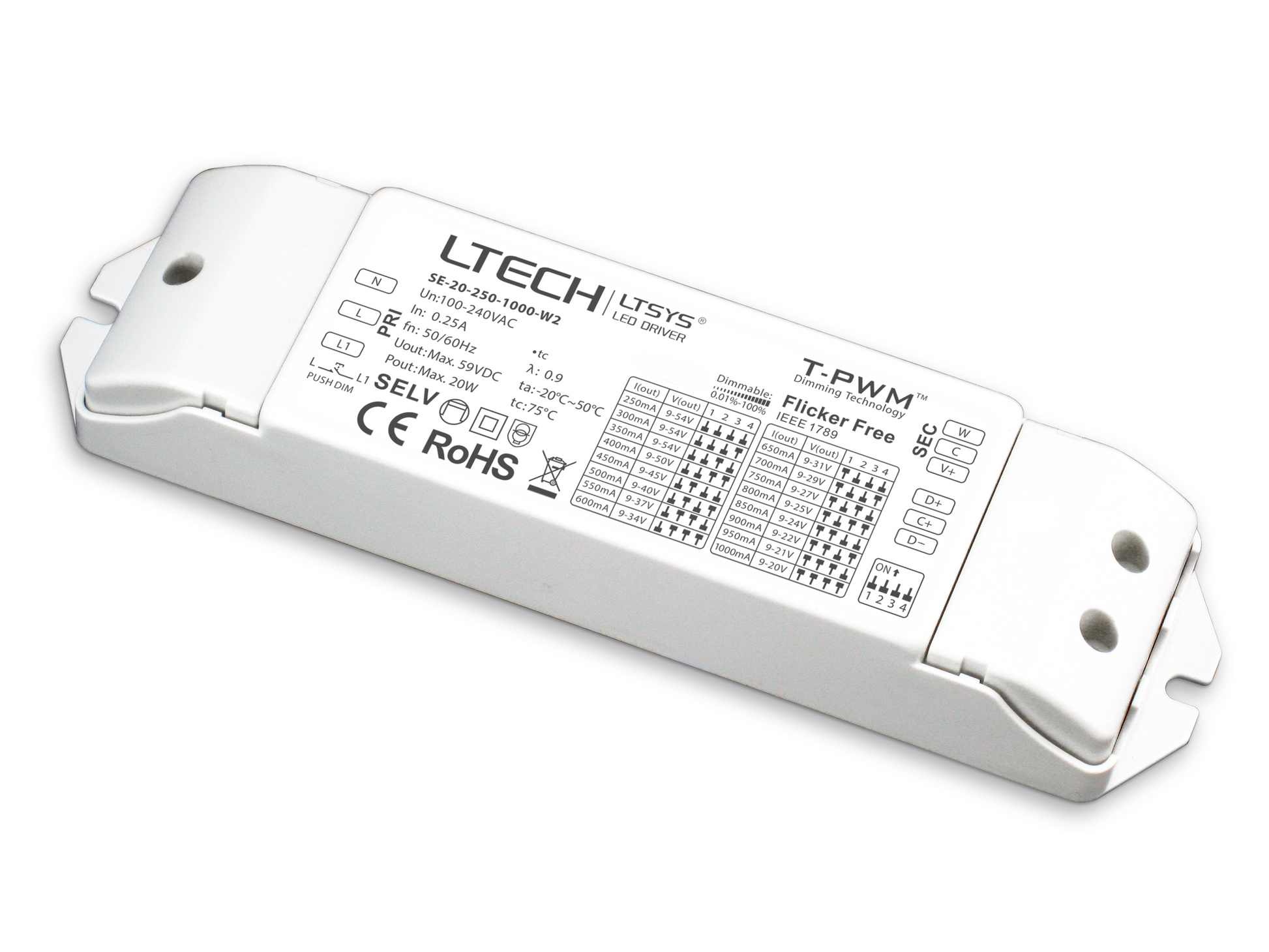

LTech SE-20-250-1000-W2A2
LTECH LED Constant Current Driver: 0-10V Dimmable / Colour Correlated Temperature
Dimming Interface: 0-10V (1-10V/10VPWM/RX), Push DIM
T-PWM™ digital dimming
Achieve dimming or CT adjustment for 1CH O-10V or 2CH 0-10V
Dimming range: 0~100%, LED start at 0.01% possible
Automatic recognition of 0-10V, 1-10V input signal
DIP switch for 16 optional currents' quick selection
0-100% flicker-free (IEEE 1789 standard)
Ultra-low consumption of 0-10V ports: < 0.05mA
In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W
Innovative thermal management technology, intelligent power life protection
Over temp. / Over voltage / Over load / Short circuit protection, recover automatically
Non-load output voltage 0V to prevent damages to LED caused by poor contact
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
5 years warranty (Rubycon capacitor)
