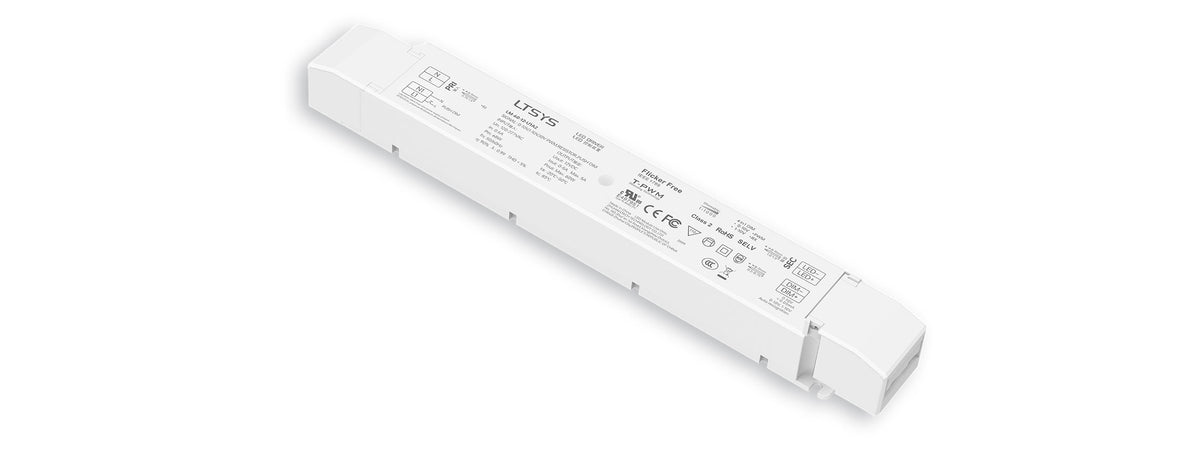

LTECH LM-60-24-U1A2 60W 24V 0/1–10V Dimmable LED Driver

Constant Voltage Driver with 0/1–10V and Push DIM Control

The LTECH LM-60-24-U1A2 is a 60W constant-voltage LED driver designed for smooth and reliable control of 24V LED lighting. It is suitable for residential, hospitality, retail and commercial applications requiring professional analogue dimming control.

Supporting 0–10V, 1–10V, 10V PWM and resistance dimming, the driver offers flexible compatibility with a wide range of lighting-control systems. Push DIM is also supported, allowing simple local switching and brightness adjustment from a standard momentary switch.

Operating from a wide 120–277V AC input, the LM-60-24-U1A2 provides a regulated 24V DC output at up to 2.5A, delivering a maximum output power of 60W. Smooth dimming from 0–100% provides precise and dependable brightness control.

Compact and easy to integrate, the LM-60-24-U1A2 combines high power factor, efficient operation and reliable constant-voltage performance, making it a practical choice for professional 24V dimmable LED lighting installations.
