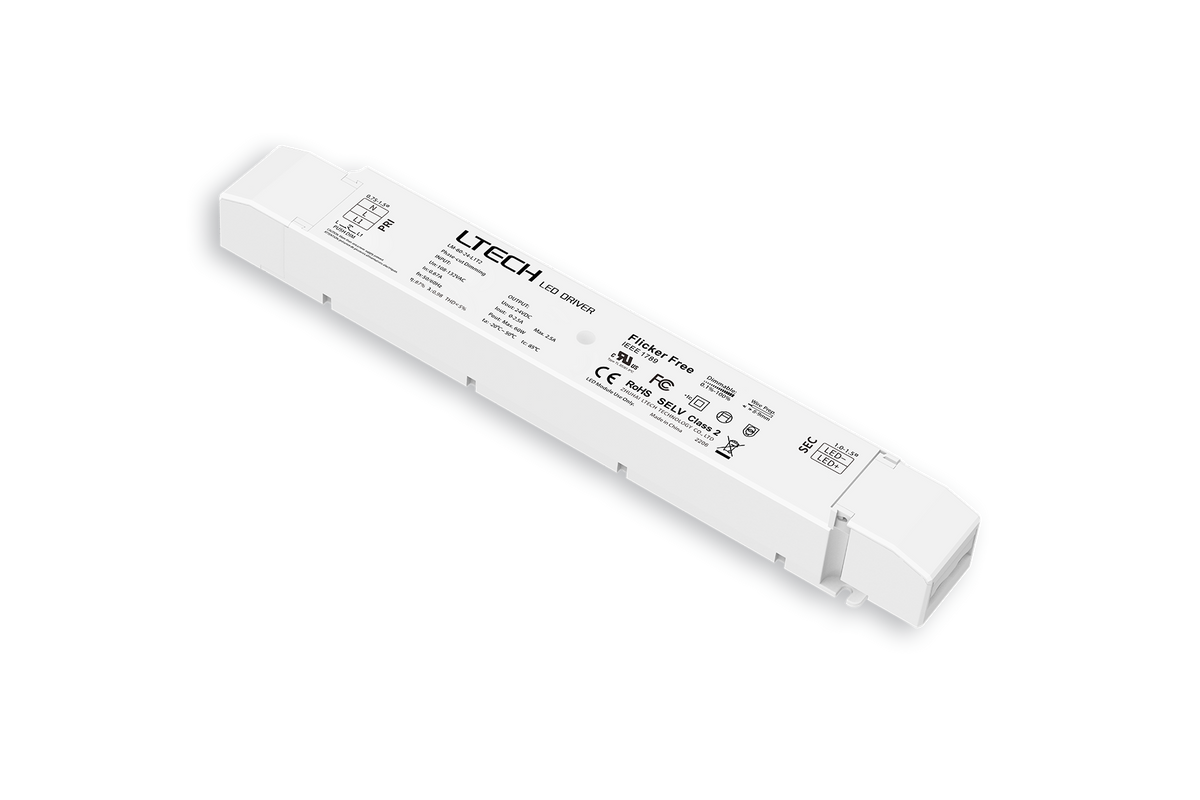

LTECH LM-60-12-L1T2 60W 12V TRIAC/ELV Dimmable LED Driver

LTECH LM-60-12-L1T2 60W 12V TRIAC/ELV Dimmable LED Driver
Constant Voltage Driver with Phase-Cut and Push DIM Control

The LTECH LM-60-12-L1T2 is a 60W constant-voltage LED driver designed for smooth and reliable dimming of 12V LED lighting. It is suitable for residential, hospitality, retail and commercial applications requiring professional phase-cut dimming control.

Supporting both leading-edge TRIAC and trailing-edge ELV dimming, the driver offers broad compatibility with conventional phase-cut wall dimmers. Push DIM control is also supported, providing a simple alternative for local switching and brightness adjustment.

Operating from a 108–132V AC input, the LM-60-12-L1T2 provides a regulated 12V DC output at up to 5A, delivering a maximum output power of 60W. Smooth PWM dimming from 0–100% down to 0.1% provides precise low-level lighting control.

Compact and easy to integrate, the LM-60-12-L1T2 combines high power factor, efficient operation and built-in protection for dependable performance in professional 12V LED lighting installations. It is UL, CE and RoHS certified and backed by a 5-year manufacturer warranty.
