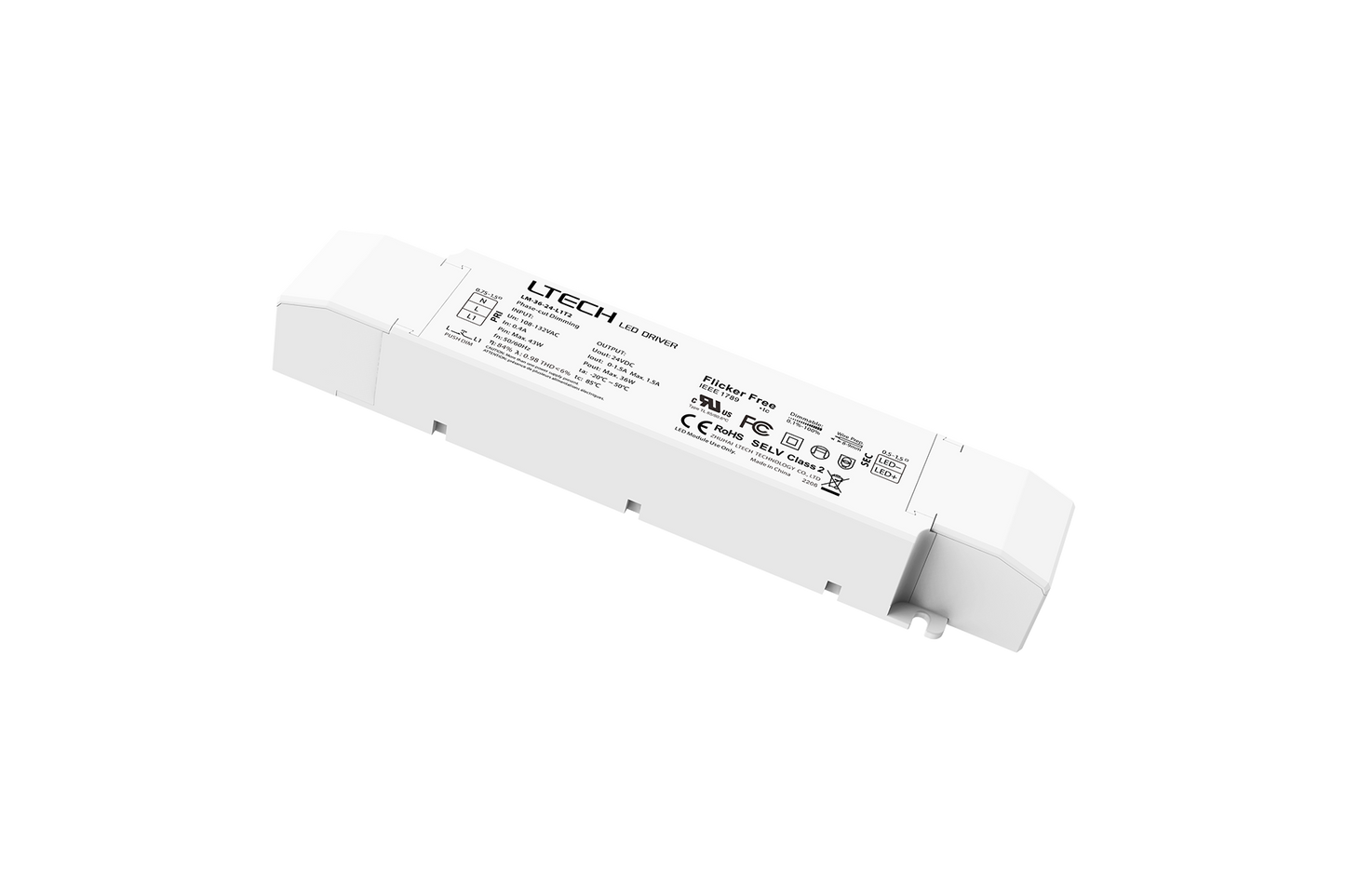

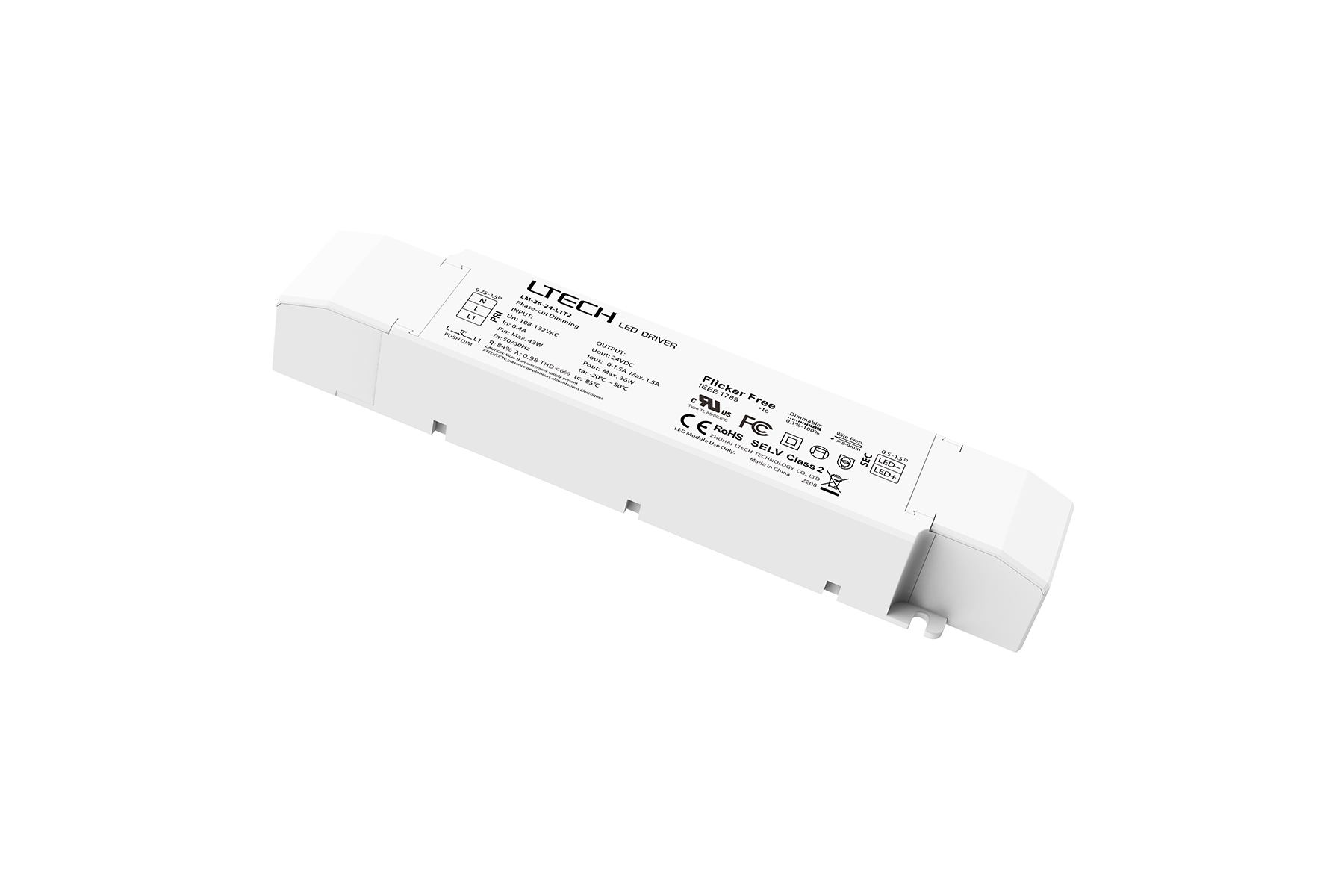

LTECH 36W 24V Constant Voltage LED Driver LM-36-24-L1T2 | Triac Dimmable

The LTECH LM-L1T2 Series 36W comprises constant voltage phase cut dimming LED drivers designed for efficient dimming, high performance, and reliable operation in modern lighting applications.

Operating within an input voltage range of 108-132VAC, LM-L1T2 Series drivers provide stable 12VDC or 24VDC outputs, with power options including 36W and 60W, catering to various lighting requirements. They support Triac (leading-edge), ELV (trailing-edge), and Push-DIM dimming interfaces, enabling smooth, flicker-free dimming from 0% to 100% down to 0.1%, ensuring precise brightness control without compromising the LEDs’ colour rendering index.

Built with comprehensive protection features such as overheat, overload, overvoltage, and short circuit safeguards, these drivers ensure safe and stable operation. The fully digital circuit design enhances performance and extends the lifespan of the drivers, making them a dependable choice for professional lighting systems. The housing is Ade from V0 flame-retardant PC materials, ensuring durability and safety.

Certified by CE and RoHS, these drivers meet international safety and quality standards. Their versatile design and robust features make the LM-L1T2 Series 36W an excellent solution for applications requiring efficient and reliable LED dimming.

For further technical details and data sheets, click here.
