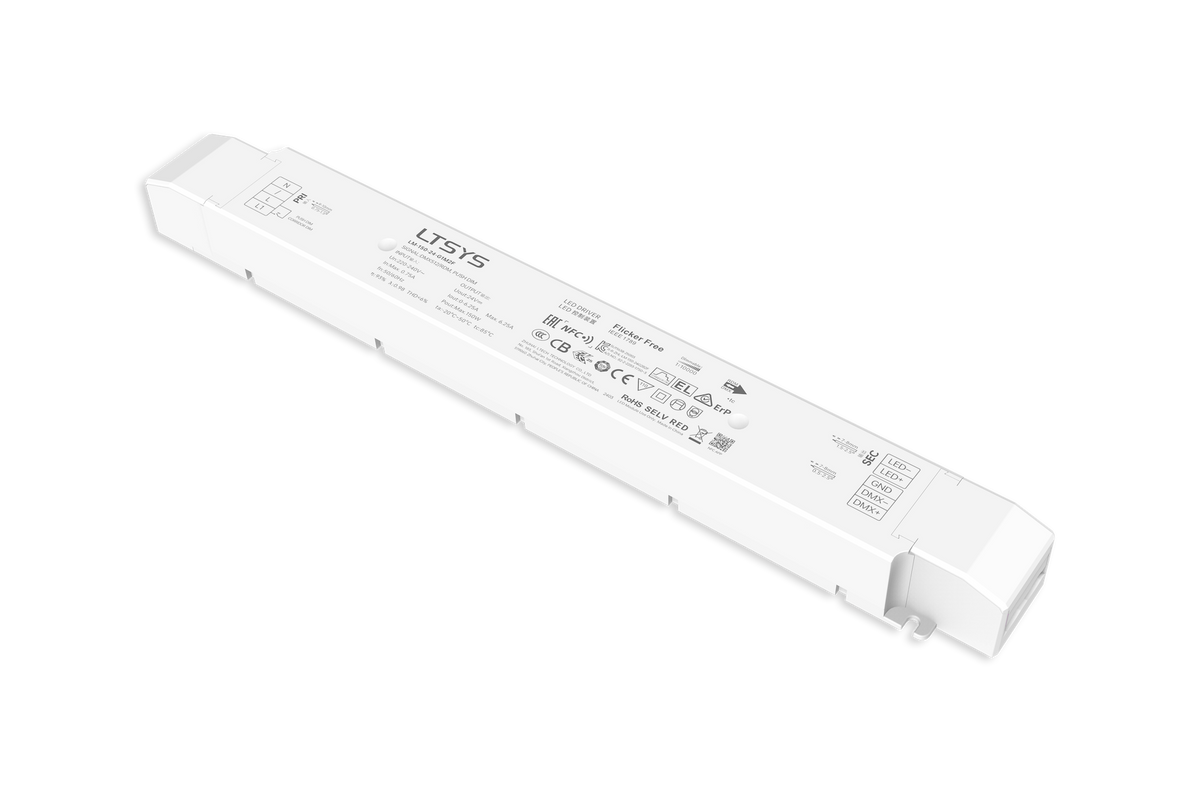

LTECH LTSYS LM-150-24-G1M2F 150W 24V DMX512/RDM LED Driver

Constant Voltage Driver with Push DIM, NFC Programming and Corridor Dimming

The LTECH LTSYS LM-150-24-G1M2F is a 150W constant-voltage LED driver designed for professional 24V LED lighting applications. Supporting DMX512/RDM digital control, it provides precise brightness adjustment for retail, hospitality, commercial, architectural and other advanced lighting installations.

The driver supports DMX512/RDM, Push DIM and corridor light dimming, providing flexible control for both standard and sensor-based lighting systems. Smooth flicker-free dimming from 0–100% down to 0.01%, together with soft-start functionality, provides comfortable and precise brightness adjustment throughout the dimming range.

Operating from a 220–240V AC input, the LM-150-24-G1M2F provides a regulated 24V DC output at up to 6.25A, delivering a maximum output power of 150W. NFC programming allows parameters including DMX address, dimming curve, PWM frequency, brightness range, fade settings and corridor-light functions to be configured using the LTECH NFC Lighting app, while RDM enables remote addressing and device management.

Designed for professional installations, the driver features a flame-retardant housing with screwless strain relief and removable end caps. Integrated over-temperature, over-voltage, overload and short-circuit protection, together with up to 93% efficiency, a service life exceeding 100,000 hours and a 5-year manufacturer warranty, make it a dependable solution for high-power 24V constant-voltage LED lighting systems.
