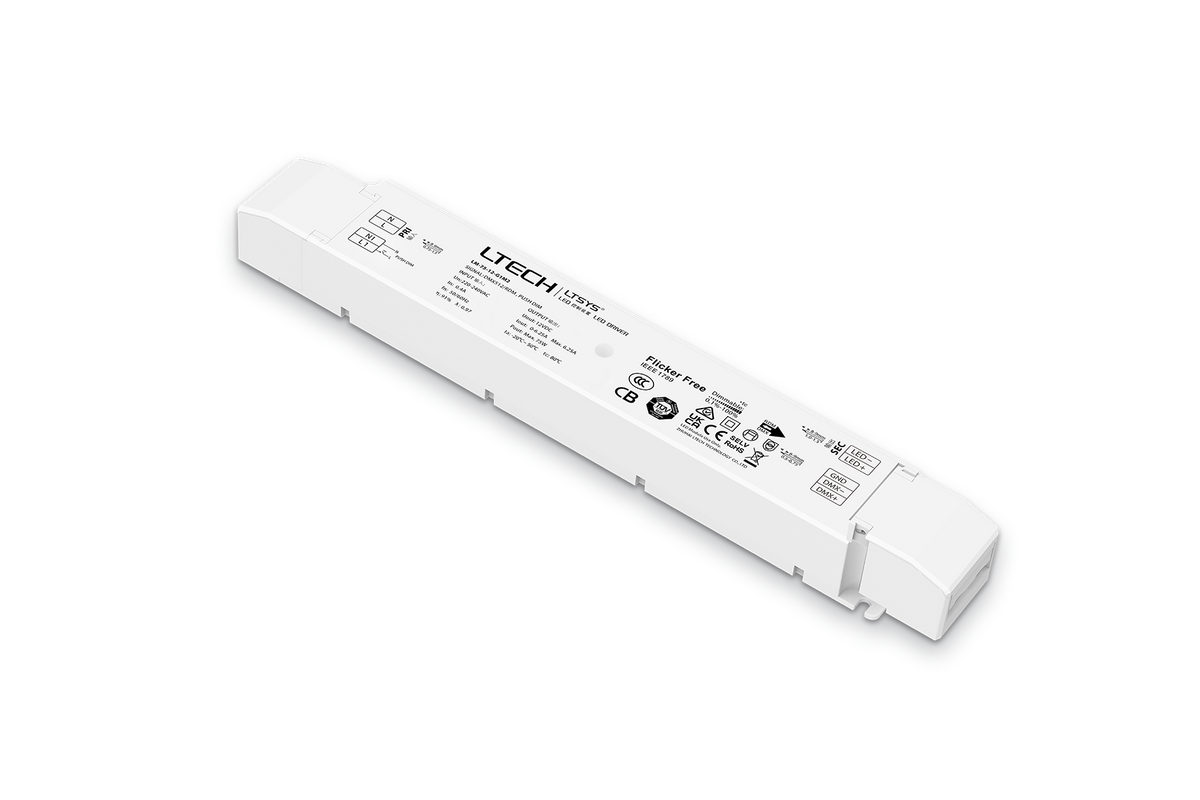

LTECH LTSYS LM-75-12-G1M2F 75W 12V DMX512/RDM LED Driver

Constant Voltage Driver with Push DIM, NFC Programming and Corridor Dimming

The LTECH LTSYS LM-75-12-G1M2F is a 75W constant-voltage LED driver designed for professional 12V LED lighting applications. Supporting DMX512/RDM digital control, it provides precise brightness adjustment for retail, hospitality, commercial, architectural and other advanced lighting installations.

The driver supports DMX512/RDM, Push DIM and corridor light dimming, with smooth flicker-free control from 0–100% down to 0.01%. RDM functionality allows remote device management and addressing, while Push DIM provides straightforward local switching and brightness adjustment where required.

Operating from a 220–240V AC input, the LM-75-12-G1M2F provides a regulated 12V DC output at up to 6.25A, delivering a maximum output power of 75W. NFC programming allows settings including DMX address, dimming curve, PWM frequency, brightness range and corridor-light parameters to be configured using the LTECH NFC Lighting app, while OTA support enables compatible firmware updates.

Compact and easy to integrate, the driver features a flame-retardant housing with screwless strain relief and removable end caps. Integrated over-temperature, over-voltage, overload and short-circuit protection, together with a service life exceeding 100,000 hours and a 5-year manufacturer warranty, make it a dependable solution for professional 12V constant-voltage lighting systems.
