LTECH LM-75-12-G1D2F 75W 12V DALI-2 LED Driver

Constant Voltage Driver with DALI-2, Push DIM and NFC Programming

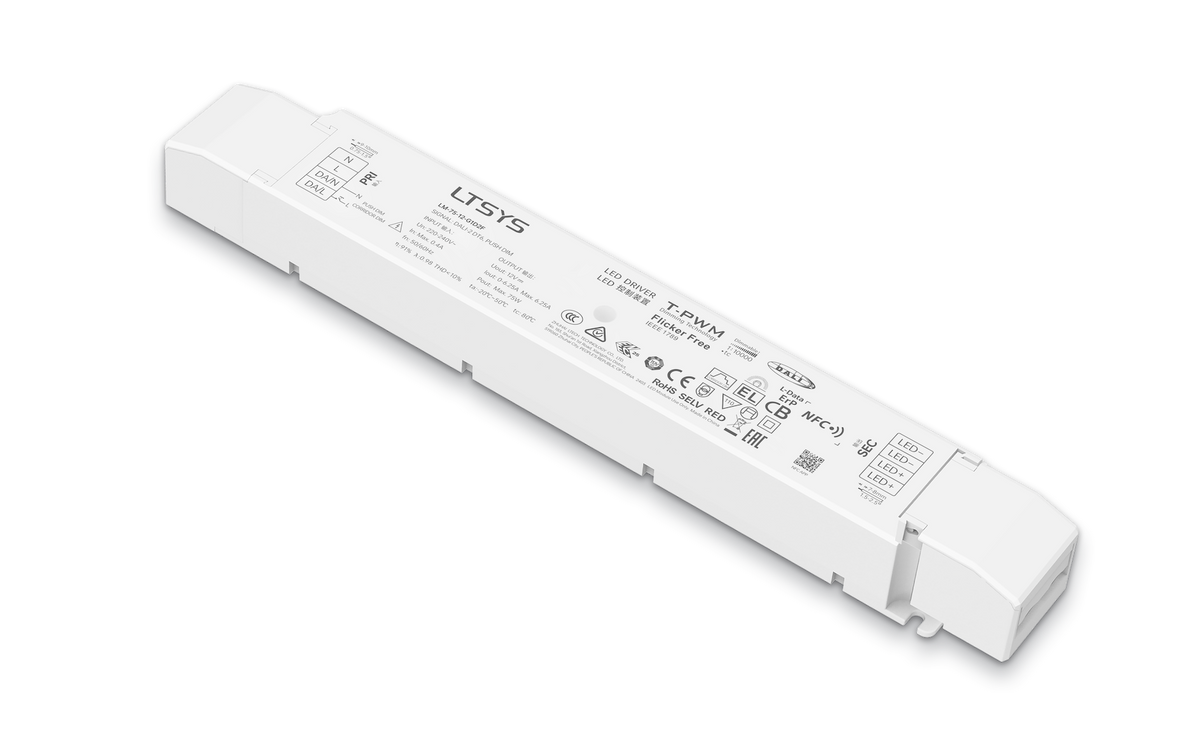

The LTECH LM-75-12-G1D2F is a 75W constant-voltage LED driver designed for professional 12V LED lighting applications. Providing a regulated 12V DC output at up to 6.25A, it is well suited to architectural, retail, hospitality, commercial and residential lighting installations.

Supporting DALI-2 DT6 and Push DIM control, the driver provides smooth digital dimming from 0–100% down to 0.01%. It also supports corridor lighting control, allowing compatible sensors to provide automatic full-output, standby and switch-off sequences for energy-efficient lighting applications.

Integrated NFC programming allows operating parameters such as the dimming mode, brightness range, dimming curve, PWM frequency and DALI settings to be configured using the LTECH NFC Lighting app. The driver also supports L-Data and DALI Parts 251, 252 and 253 for enhanced digital configuration and asset information.

Operating from a 220–240V AC input, the LM-75-12-G1D2F provides up to 91% efficiency and includes overheat, over-voltage, overload and short-circuit protection with automatic recovery. Its Class II construction, two SELV constant-voltage outputs, 100,000-hour nominal service life and 5-year manufacturer warranty make it a dependable solution for professional 12V LED lighting systems.
