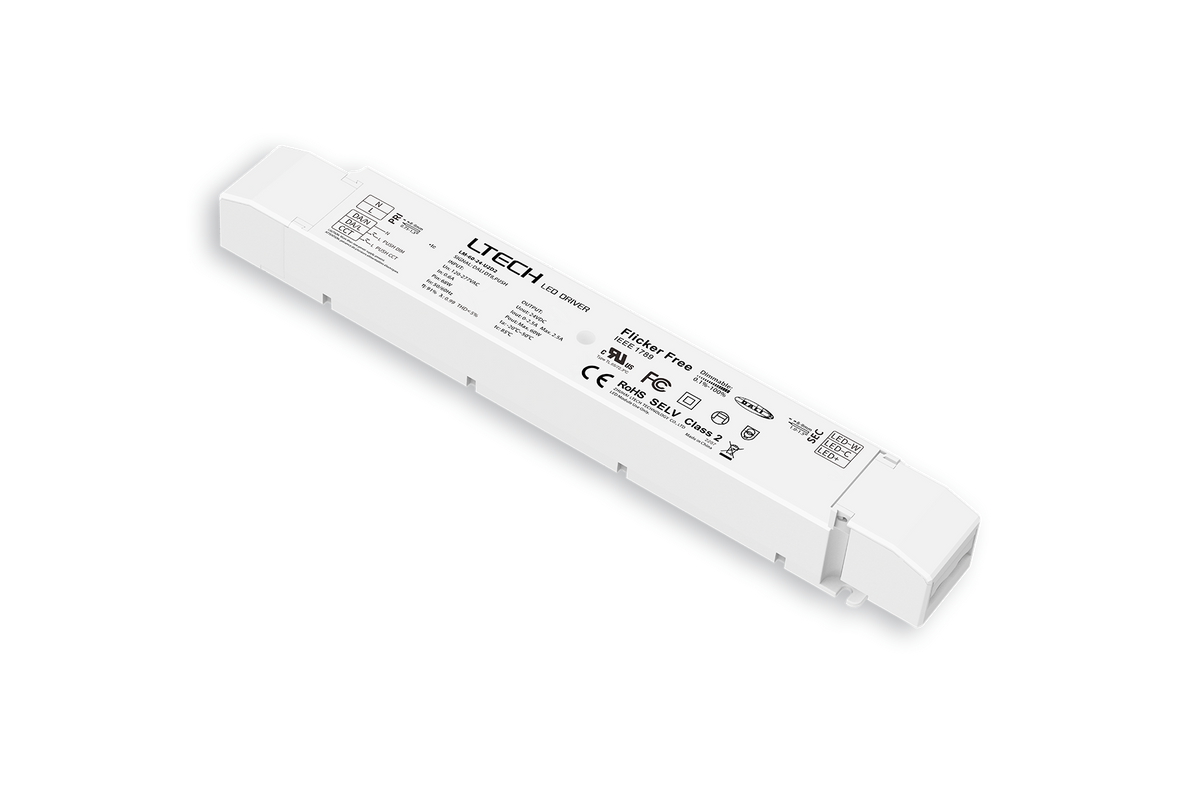

LTECH LM-60-24-U2D2 60W 24V DALI-2 Tunable White LED Driver

Constant Voltage Driver with DALI-2 DT6/DT8 and Push DIM/CCT Control

The LTECH LM-60-24-U2D2 is a compact 60W constant-voltage LED driver designed specifically for 24V tunable white lighting applications. Providing a regulated 24V DC output at up to 2.5A, it features a two-channel common-anode output for warm white and cool white LED loads, making it suitable for residential, hospitality, retail, commercial and architectural lighting installations.

Supporting DALI-2 DT6/DT8 and Push DIM/CCT control, the driver provides smooth dimming from 0–100% down to 0.1% together with colour temperature adjustment from 2700K to 6500K. Separate Push DIM and Push CCT inputs allow convenient local control of brightness and colour temperature, while dimming and CCT memory retain the previously selected settings when the lighting is switched back on.

A constant-power control design helps maintain consistent brightness while the colour temperature is adjusted. Although each warm white and cool white channel can be connected to a load rated up to 60W, the combined output of both channels is electronically maintained within the driver's total 60W power rating.

Operating from a wide 120–277V AC input, the LM-60-24-U2D2 provides up to 91% efficiency with high power factor and flicker-free performance. Overheat, over-voltage, overload and short-circuit protection with automatic recovery are built in, while its Class 2 output, 50,000-hour rated lifetime and 5-year manufacturer warranty make it a dependable solution for professional tunable white LED lighting systems.
