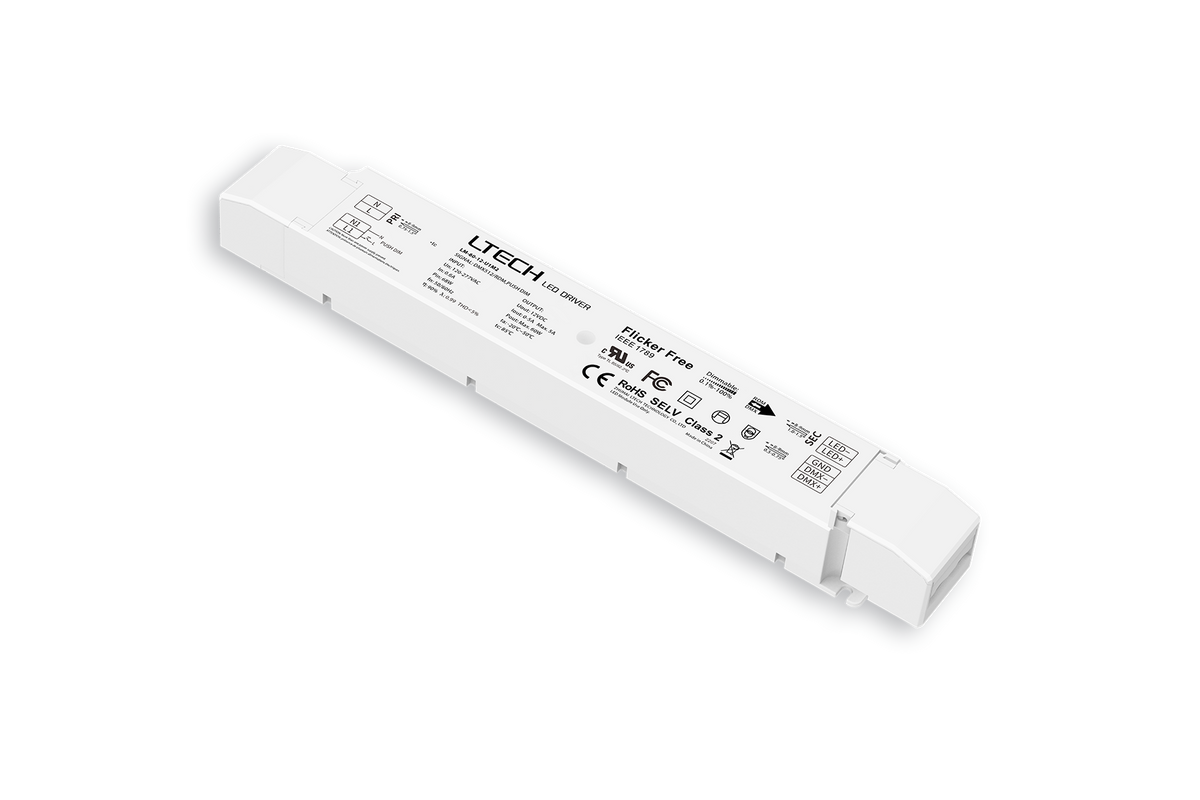

LTECH LM-60-12-U1M2 60W 12V DMX/RDM LED Driver

Constant Voltage Driver with DMX/RDM and Push DIM Control

The LTECH LM-60-12-U1M2 is a compact 60W constant-voltage LED driver designed for professional 12V LED lighting applications. Providing a regulated 12V DC output at up to 5A, it is well suited to residential, hospitality, retail, commercial and architectural lighting installations.

Supporting DMX/RDM and Push DIM control, the driver provides smooth dimming from 0–100% down to 0.1%. Push DIM enables simple local switching and stepless brightness adjustment using a standard momentary switch, with dimming memory retaining the previously selected brightness level when the lighting is switched back on.

RDM remote device management allows compatible equipment to configure and manage the driver through the DMX network. The driver can be used with a compatible RDM programmer for DMX address configuration and device management, providing additional flexibility during commissioning and installation.

Operating from a wide 120–277V AC input, the LM-60-12-U1M2 provides up to 90% efficiency with high power factor and flicker-free performance. Overheat, over-voltage, overload and short-circuit protection with automatic recovery are built in, while its Class 2 output, 50,000-hour rated lifetime and 5-year manufacturer warranty make it a dependable solution for professional DMX-controlled 12V LED lighting systems.
