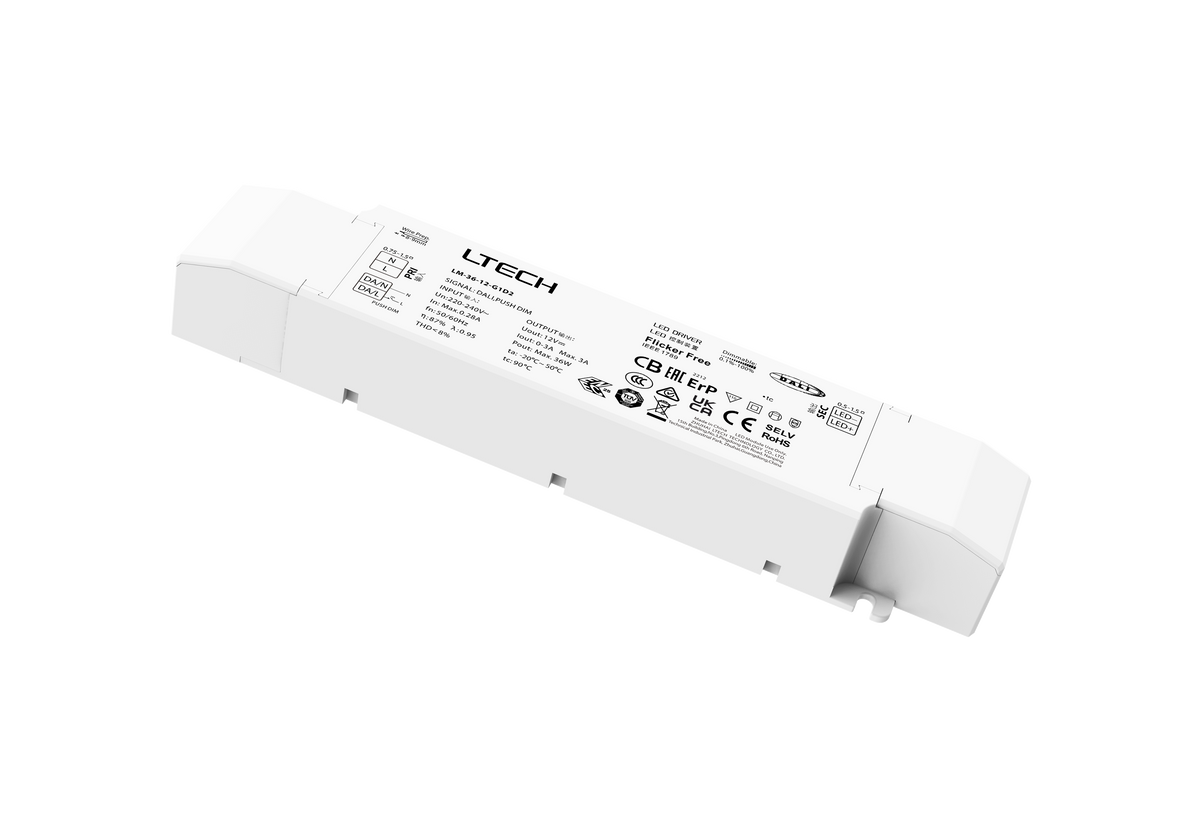

LTECH LM-36-12-G1D2 36W 12V DALI-2 LED Driver

Constant Voltage Driver with DALI-2 and Push DIM Control

The LTECH LM-36-12-G1D2 is a compact 36W constant-voltage LED driver designed for professional 12V LED lighting applications. Providing a regulated 12V DC output at up to 3A, it is well suited to residential, hospitality, retail, commercial and architectural lighting installations.

Supporting DALI-2 and Push DIM control, the driver provides smooth dimming from 0–100% down to 0.1%. LTECH T-PWM™ technology delivers flicker-free performance with a high-frequency exemption level, while Push DIM allows simple local switching and stepless brightness adjustment from a standard momentary switch.

Operating from a 200–240V AC input, the LM-36-12-G1D2 provides up to 36W of output power with high power factor and efficient operation. The DALI interface conforms to IEC 62386-101, 102 and 207, providing reliable integration with professional digital lighting-control systems.

Compact and easy to integrate, the LM-36-12-G1D2 includes overheat, over-voltage, overload and short-circuit protection for dependable operation. Its Class II construction, 50,000-hour rated lifetime and 5-year manufacturer warranty make it a practical solution for professional dimmable 12V LED lighting systems.
