LTECH LTSYS LM-240-24-G2A2 240W 24V 0/1–10V Tunable White LED Driver

Constant Voltage Driver with DIM/CCT, Push DIM/CCT and NFC Programming

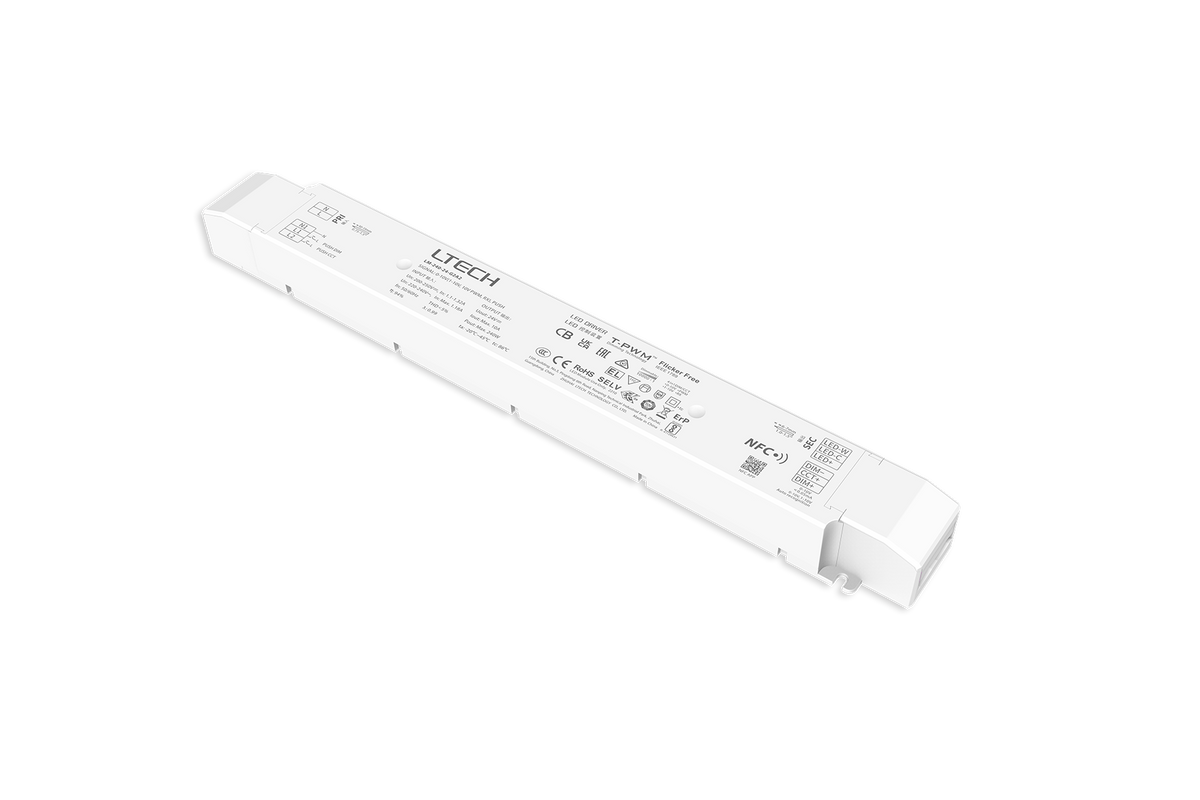

The LTECH LTSYS LM-240-24-G2A2 is a 240W constant-voltage LED driver designed specifically for 24V tunable white lighting applications. With dedicated warm white and cool white channels, it provides flexible brightness and colour temperature control for hospitality, retail, residential, commercial and architectural lighting installations.

Supporting 0–10V, 1–10V, 10V PWM and resistance control, the driver allows smooth adjustment of both brightness and colour temperature. Push DIM/CCT control is also supported for convenient local operation, while flicker-free T-PWM dimming provides precise adjustment from 0–100% down to 0.01%.

Operating from a 220–240V AC input, the LM-240-24-G2A2 provides a regulated 24V DC output at up to 10A, delivering a maximum total output power of 240W. Its constant-power tunable white design helps maintain consistent brightness throughout colour temperature adjustment, while NFC programming allows parameters such as dimming type, dimming curve, PWM frequency, fade time and brightness range to be configured using the LTECH NFC Lighting app.

Designed for professional installations, the driver features a flame-retardant housing with screwless strain relief and adjustable end caps. Integrated over-temperature, over-voltage, overload and short-circuit protection, together with up to 94% efficiency, a rated service life of up to 100,000 hours and a 5-year manufacturer warranty, provide dependable long-term performance.
