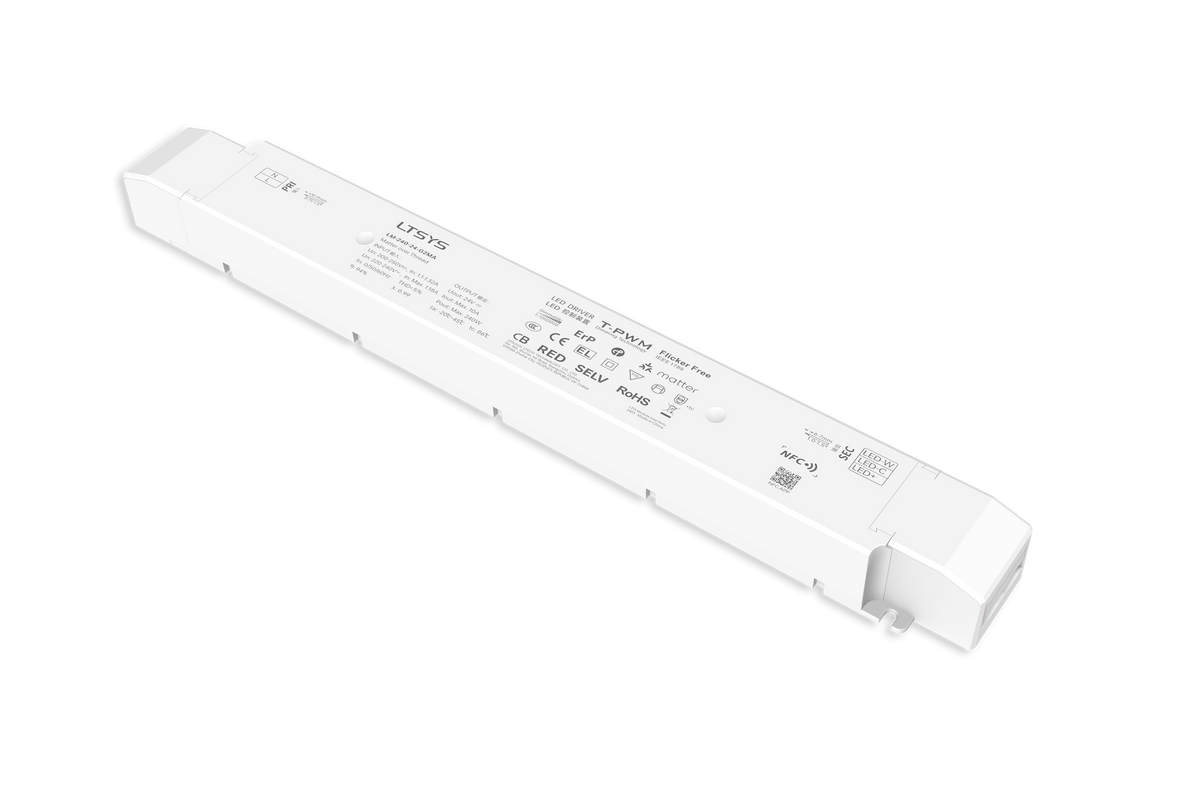

LTECH LM-240-24-G1MA 240W 24V Matter Smart Constant Voltage LED Driver

24V 10A Matter over Thread Driver with NFC Programming and Ultra-Deep Dimming

The LTECH LM-240-24-G1MA is a high-power 240W constant-voltage smart LED driver designed for professional 24V LED lighting applications. Delivering a regulated 24V DC output at up to 10A and 240W, it is particularly well suited to high-power LED strip lighting and other resistor-limited constant-voltage LED luminaires.

Featuring Matter over Thread connectivity and Matter 1.4 support, the driver integrates with major smart home ecosystems including Apple Home, Google Home, Amazon Alexa and Samsung SmartThings. When used with a compatible Matter hub featuring Thread Border Router functionality, lighting can be switched and dimmed through supported apps, voice control, scenes, automations, timers and remote control. QR-code commissioning and multi-ecosystem pairing make it straightforward to integrate into modern smart lighting installations.

LTECH T-PWM technology provides smooth 0–100% dimming with dimming depth configurable down to 0.0001%. Integrated NFC programming allows operating parameters to be configured using the LTECH NFC Lighting app, including dimming fade time, power-on fade time, dimming depth, brightness range, power-on state and other settings. Soft-start and gradual brightening functions help provide comfortable lighting transitions.

Operating from a 220–240V AC input, the LM-240-24-G1MA delivers up to 94% typical efficiency with a power factor above 0.99 at full load. Its V0 flame-retardant PC housing features a screwless end-cap design for straightforward assembly and removal, while the housing length can be adjusted where required. Over-temperature, over-voltage, overload and short-circuit protection with automatic recovery are built in, together with no-load and network standby consumption below 0.5W.

The LM-240-24-G1MA is intended primarily for resistor current-limited LED loads such as standard 24V LED strip. LED fittings containing their own constant-current IC can generate very high instantaneous inrush current and may require a specially programmed version of the driver, so these applications should be specified when ordering. With a service life of up to 100,000 hours and a 5-year manufacturer warranty, it provides a dependable solution for demanding Matter-controlled 24V lighting systems.
