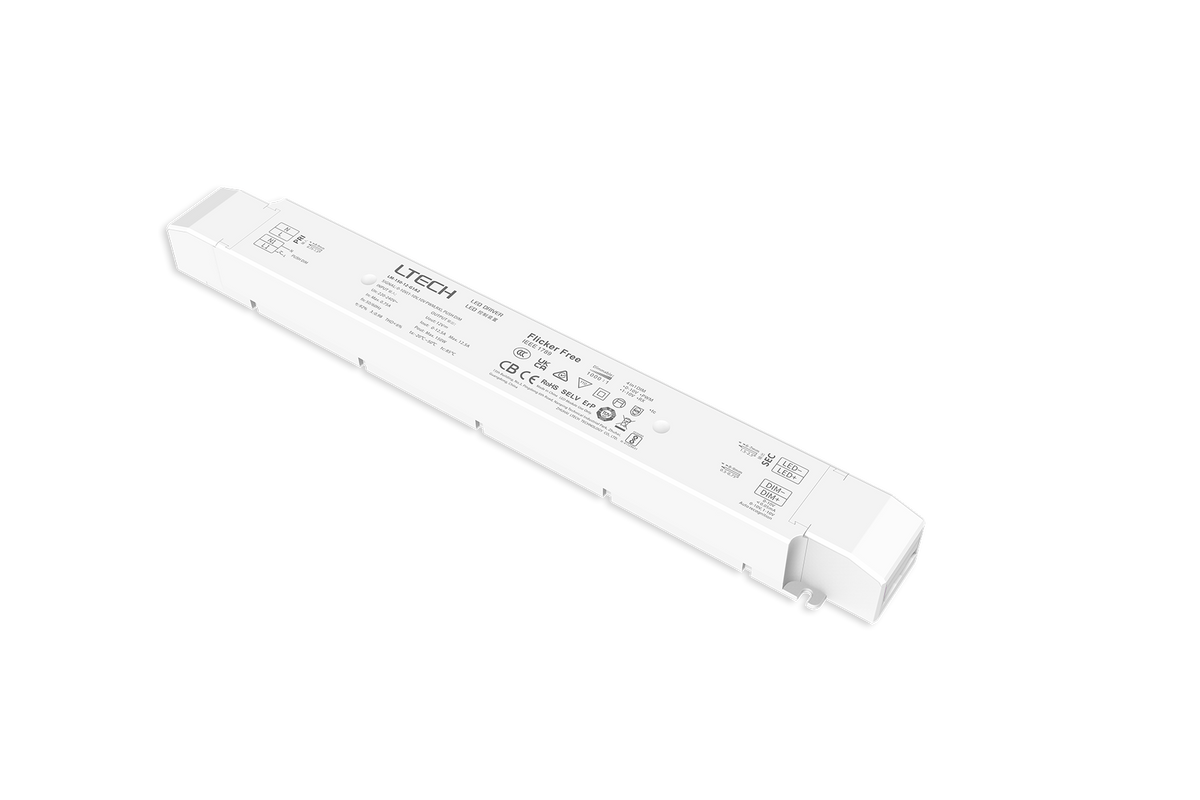

TECH LM-150-12-G1A2 150W 12V 0/1–10V Dimmable LED Driver

Constant Voltage Driver with 0/1–10V and Push DIM Control

The LTECH LM-150-12-G1A2 is a 150W constant-voltage LED driver designed for smooth and reliable dimming of 12V LED lighting. Providing a regulated 12V DC output, it is well suited to residential, hospitality, retail, commercial and architectural lighting installations.

Supporting 0–10V, 1–10V, 10V PWM and resistance dimming, the driver offers flexible compatibility with a wide range of analogue lighting-control systems. Push DIM control is also supported, providing a straightforward option for local switching and brightness adjustment.

Operating from a 220–240V AC input, the LM-150-12-G1A2 provides up to 12.5A with a maximum output power of 150W. Smooth dimming from 0–100% down to 0.1%, together with high power factor, flicker-free performance and high efficiency, provides precise and dependable lighting control.

Compact and easy to integrate, the driver features a flame-retardant housing with adjustable end caps together with over-temperature, over-voltage, overload and short-circuit protection. Its high output capacity, flexible dimming options and 5-year manufacturer warranty make it a practical solution for professional 12V constant-voltage LED lighting systems.
