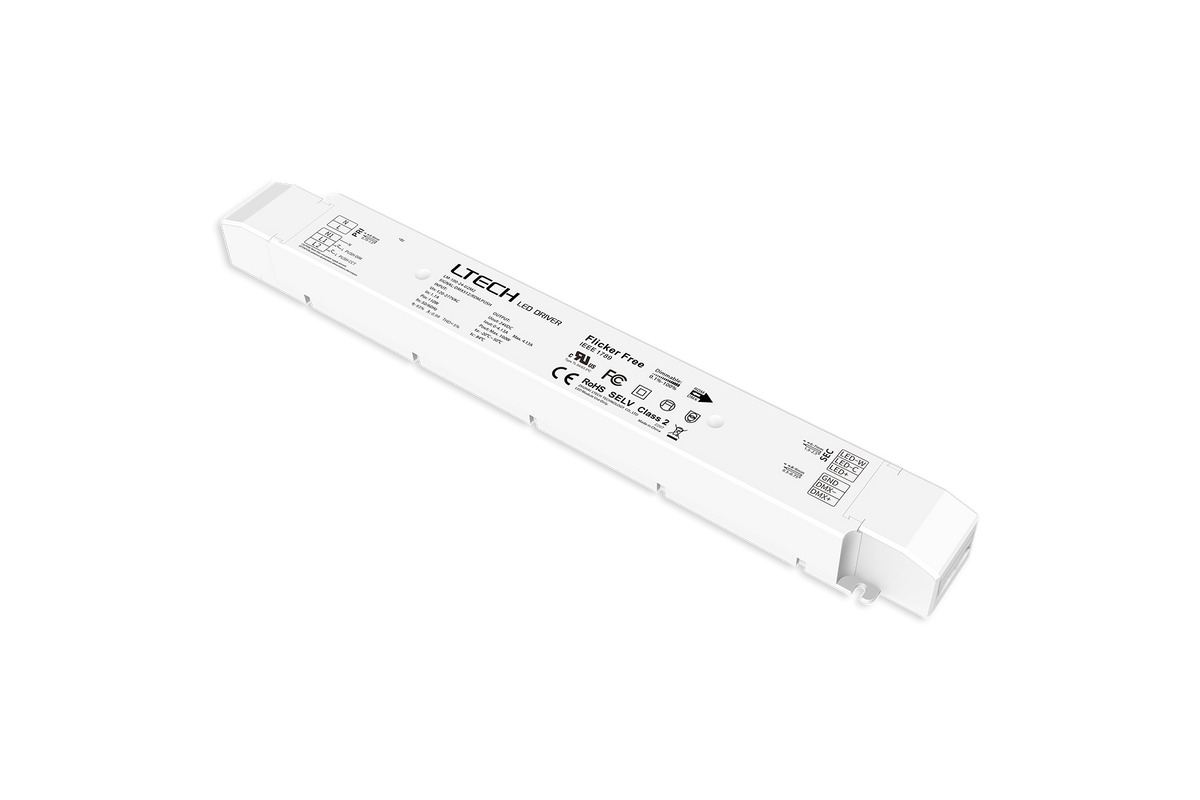

LTECH LM-100-24-U2M2 100W 24V DMX/RDM Tunable White LED Driver

Constant Voltage Driver with DMX/RDM and Push DIM/CCT Control

The LTECH LM-100-24-U2M2 is a 100W constant-voltage LED driver designed specifically for professional 24V tunable white lighting applications. Providing a regulated 24V DC output at up to 4.13A, it features a two-channel common-anode output for warm white and cool white LED loads, making it suitable for residential, hospitality, retail, commercial and architectural lighting installations.

Supporting DMX/RDM and Push DIM/CCT control, the driver provides smooth dimming from 0–100% down to 0.1% together with colour temperature adjustment from 2700K to 6500K. Separate Push DIM and Push CCT inputs provide convenient local control of brightness and colour temperature, with memory functions retaining the previously selected settings when the lighting is switched back on.

For DMX control, the first address controls brightness while the following address controls colour temperature. RDM remote device management enables compatible equipment to configure and manage the driver through the DMX network, while its constant-power design helps maintain consistent brightness during colour temperature adjustment. Each channel can support a load rated up to 100W, with the combined output maintained within the driver's total 100W rating.

Operating from a wide 120–277V AC input, the LM-100-24-U2M2 provides up to 93% efficiency with high power factor and flicker-free performance. Overheat, over-voltage, overload and short-circuit protection with automatic recovery are built in, while its Class 2 output, 50,000-hour rated lifetime and 5-year manufacturer warranty make it a dependable solution for professional DMX-controlled tunable white LED lighting systems.
