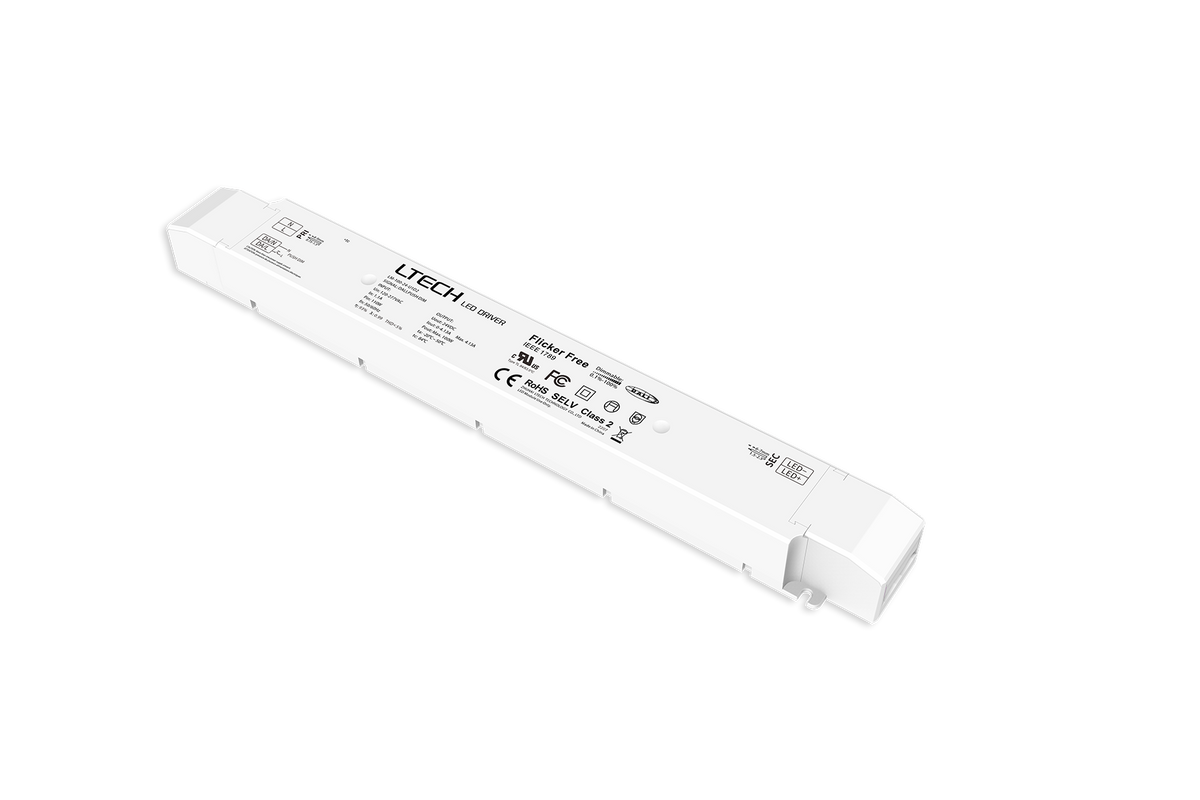

LTECH LM-100-24-U1D2 100W 24V DALI-2 LED Driver

Constant Voltage Driver with DALI-2 DT6 and Push DIM Control

The LTECH LM-100-24-U1D2 is a 100W constant-voltage LED driver designed for professional 24V LED lighting applications. Providing a regulated 24V DC output at up to 4.13A, it is well suited to residential, hospitality, retail, commercial and architectural lighting installations.

Supporting DALI-2 and Push DIM control, the driver provides smooth dimming from 0–100% down to 0.1%. Soft-on and fade-in functions help create comfortable lighting transitions, while Push DIM enables simple local switching and stepless brightness adjustment using a standard momentary switch.

Operating from a wide 120–277V AC input, the LM-100-24-U1D2 provides up to 93% efficiency with high power factor and flicker-free performance. Its DALI interface complies with IEC 62386-101, 102 and 207, providing reliable integration with professional DALI digital lighting control systems.

Compact and easy to integrate, the LM-100-24-U1D2 includes overheat, over-voltage, overload and short-circuit protection with automatic recovery. Its Class 2 output, standby power consumption below 0.5W, 50,000-hour rated lifetime and 5-year manufacturer warranty make it a dependable solution for professional dimmable 24V LED lighting systems.
