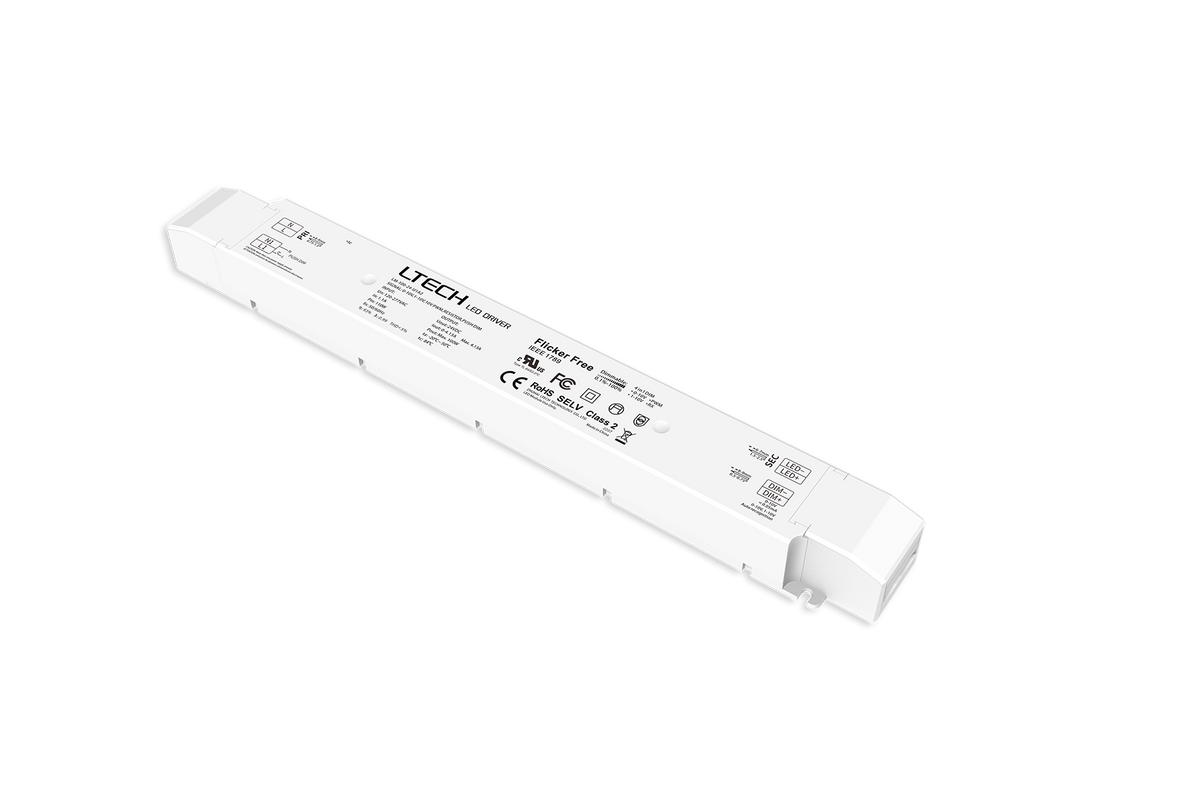

LTECH LM-100-24-U1A2 100W 24V 0-10V LED Driver

Constant Voltage Driver with 5-in-1 Dimming and Push DIM Control

The LTECH LM-100-24-U1A2 is a 100W constant-voltage LED driver designed for professional 24V LED lighting applications. Providing a regulated 24V DC output at up to 4.13A, it is well suited to architectural, retail, hospitality, commercial and residential lighting installations.

Supporting 5-in-1 dimming, the driver is compatible with 0–10V, 1–10V, 10V PWM, RX and Push DIM control. It automatically recognises 0–10V and 1–10V input signals and provides smooth dimming from 0–100% down to 0.1%, while soft-on and fade-in functions help create comfortable transitions at low light levels.

Operating from a wide 120–277V AC input, the LM-100-24-U1A2 provides up to 93% efficiency with high power factor and flicker-free performance. Its isolated dimming interface and ultra-low 0–10V control-port consumption provide reliable integration with a wide range of professional analogue lighting-control systems.

Compact and easy to integrate, the LM-100-24-U1A2 includes overheat, over-voltage, overload and short-circuit protection with automatic recovery. Its Class 2 output, 50,000-hour rated lifetime and 5-year manufacturer warranty make it a dependable solution for professional dimmable 24V LED lighting systems.
