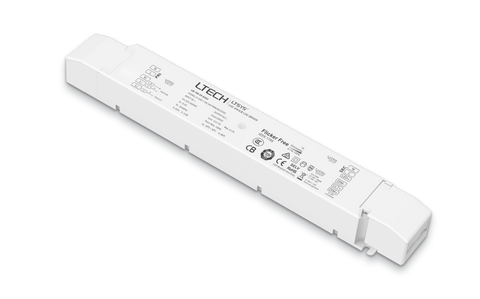

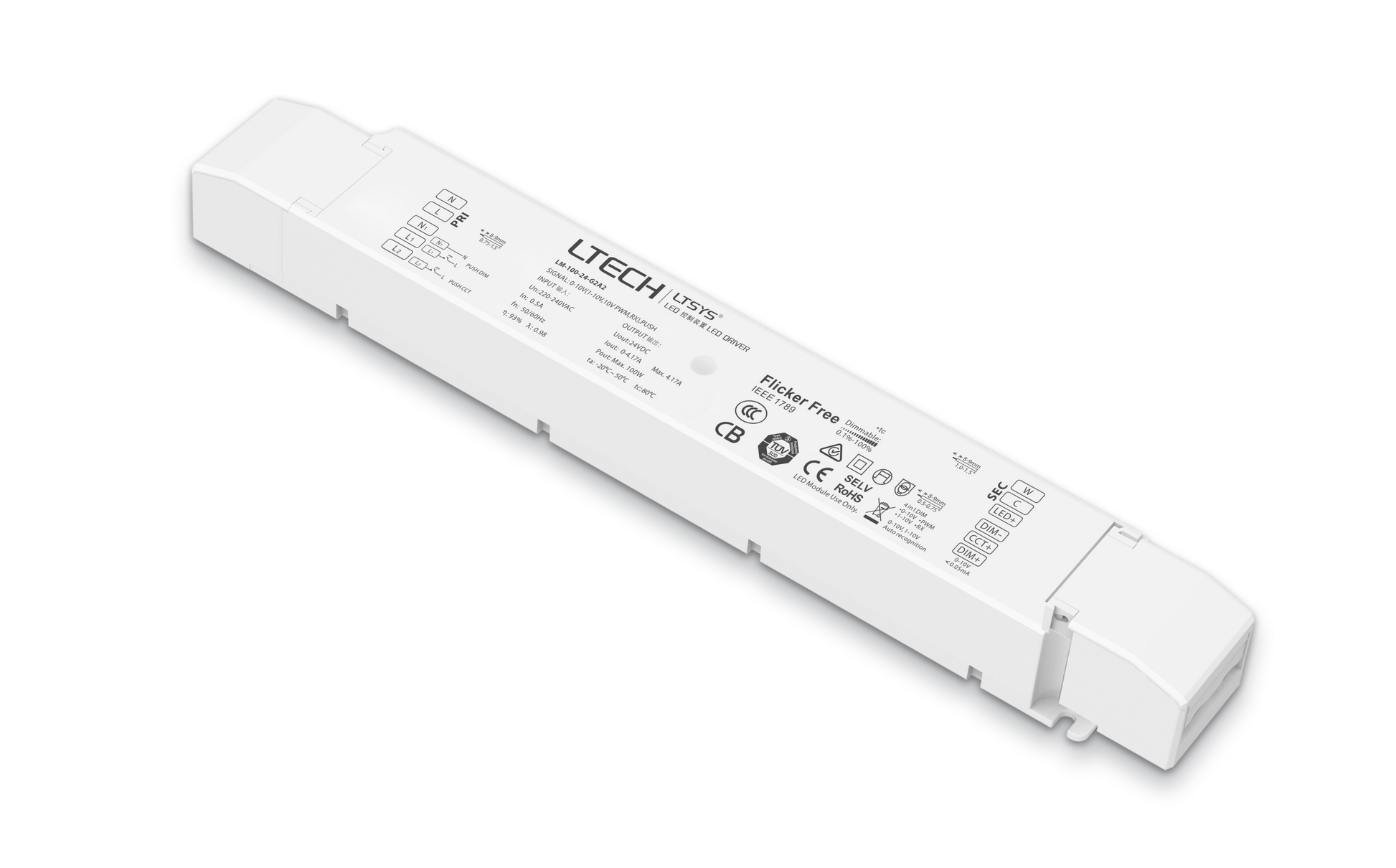

LTECH 100W 24V Constant Voltage LED Driver LM-100-24-G2A2 | 1-10V Dimmable

LTECH LED Constant Voltage Driver: 0-10V Dimmable/Colour Correlated Temperature

• Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM/CCT
• 0-10V DIM and color temperature adjusting driver, 2 independently SELV constant voltage output channels
• Constant power design, retains brightness with varying colour temperature
• Dimming range from 0-100%, dimming to 0.1%
• Color temperature range: 2700-6500K
• Automatic recognition of 0-10V, 1-10V input signal
• 0~100% flicker-free
• Over-heat / Over voltage / Over load / Short circuit protection, automatic recovery
• Full protective plastic housing
• Compliant with Safety Extra Low Voltage standard
• Suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamp applications
