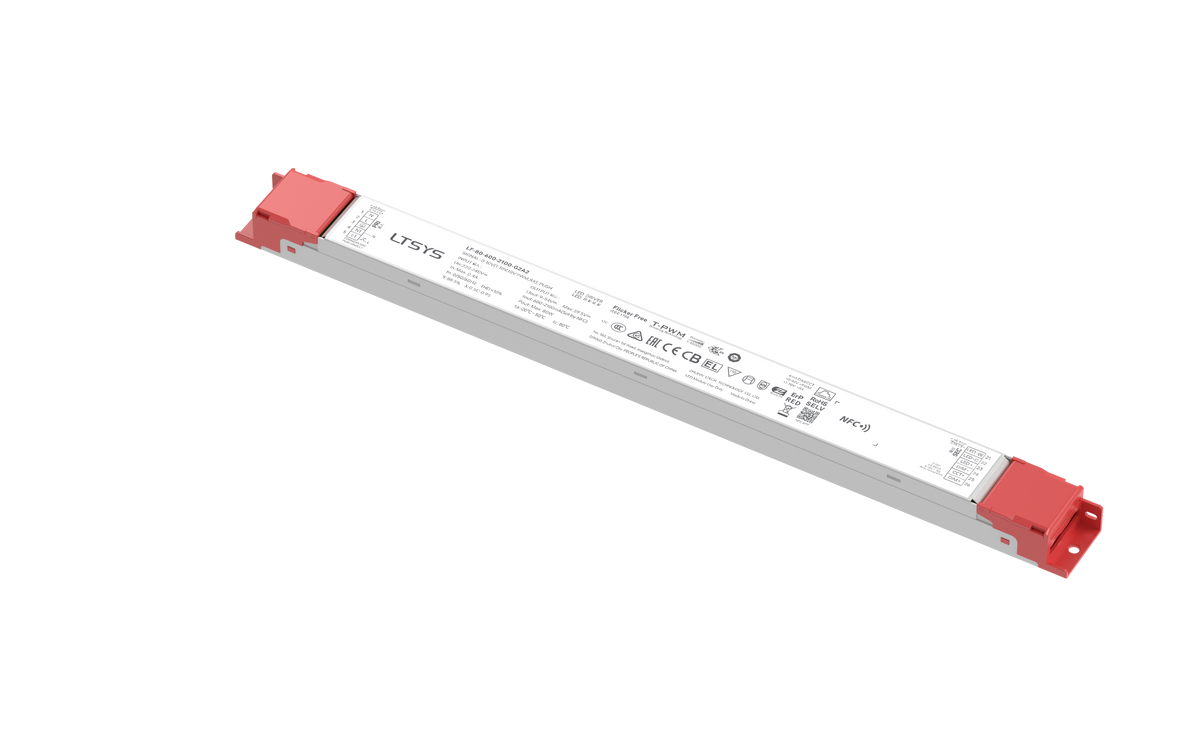

LTECH LF-80-600-2100-G2A2 40W 0-10V Tunable White LED Driver

300–1050mA 5-in-1 Dimmable Driver with 0-10V, Push DIM/CCT and NFC Programming

The LTECH LF-80-600-2100-G2A2 is a slim 40W constant-current LED driver designed for professional tunable white and dimmable linear lighting applications. With an adjustable output current from 300mA to 1050mA, a 9–54V DC output range and up to 40W output power, it is well suited to office linear lighting, suspended luminaires, floor lamps, batten lights and other commercial lighting installations.

Featuring versatile 5-in-1 control, the driver supports 0-10V, 1-10V, 10V PWM, RX and Push DIM/CCT. Its two-channel design supports both brightness and colour temperature adjustment, while LTECH T-PWM ultra-deep dimming technology provides smooth dimming from 0–100% down to 0.01% with flicker-free performance. Push DIM/CCT also allows convenient local control of brightness and colour temperature using a compatible momentary switch.

NFC programming allows the output current and operating parameters to be configured using the LTECH NFC Lighting app and a compatible smartphone. Current can be adjusted in precise 1mA steps, while settings including dimming type, dimming curve, brightness range, power-on fade time and corridor lighting behaviour can also be programmed. Configurable corridor lighting control provides additional flexibility for sensor-based and energy-efficient installations.

Operating from a 220–240V AC input, the LF-80-600-2100-G2A2 provides 88% typical efficiency and includes overheat, over-voltage, overload and short-circuit protection with automatic recovery. Its slim metal construction is available in stand-alone and built-in versions, with the stand-alone model designed to Zhaga Book 24 and the built-in version to Zhaga Books 13 and 24. Low standby consumption, a service life of up to 100,000 hours and a 5-year manufacturer warranty make it a dependable solution for professional tunable white lighting systems.
