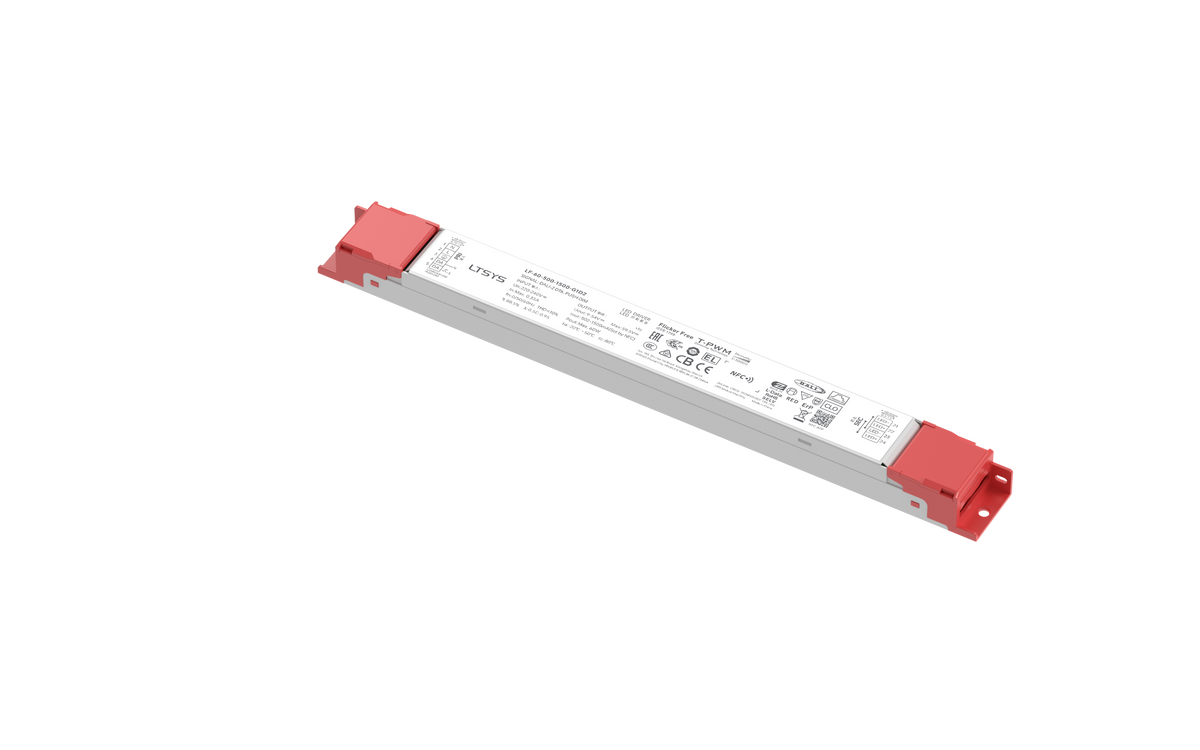

LTECH LF-60-500-1500-G1D2 60W DALI-2 Constant Current LED Driver

500–1500mA DALI-2 DT6 Driver with Push DIM and NFC Programming

The LTECH LF-60-500-1500-G1D2 is a slim 60W constant-current LED driver designed for professional linear and ultra-thin lighting applications. With an adjustable output current from 500mA to 1500mA, a 9–54V DC output range and up to 60W output power, it is well suited to office linear lighting, suspended luminaires, floor lamps, batten lights and other commercial lighting installations.

Supporting DALI-2 DT6 and Push DIM control, the driver provides smooth dimming from 0–100% down to 0.01%. LTECH T-PWM ultra-deep dimming technology delivers flicker-free performance throughout the dimming range, while soft-start gradual brightening improves visual comfort. Configurable corridor lighting control is also supported for sensor-based and energy-efficient lighting applications.

Full-command NFC programming allows the output current to be configured in precise 1mA steps using the LTECH NFC Lighting app. Parameters including the DALI address, dimming curve, brightness range, fade times, power-on behaviour, CLO light-decay compensation, EL emergency lighting and corridor lighting settings can also be adjusted. L-Data support with DALI Parts 251, 252 and 253 provides access to luminaire data, energy reporting, diagnostics and maintenance information.

Operating from a 220–240V AC input, the LF-60-500-1500-G1D2 provides up to 88.5% efficiency and includes overheat, over-voltage, overload and short-circuit protection with automatic recovery. Its slim metal construction is available in stand-alone and built-in versions, with the stand-alone model designed to Zhaga Book 24 and the built-in version to Zhaga Books 13 and 24. Low standby consumption, a service life of up to 100,000 hours and a 5-year manufacturer warranty make it a dependable solution for professional DALI-controlled constant-current lighting systems.
