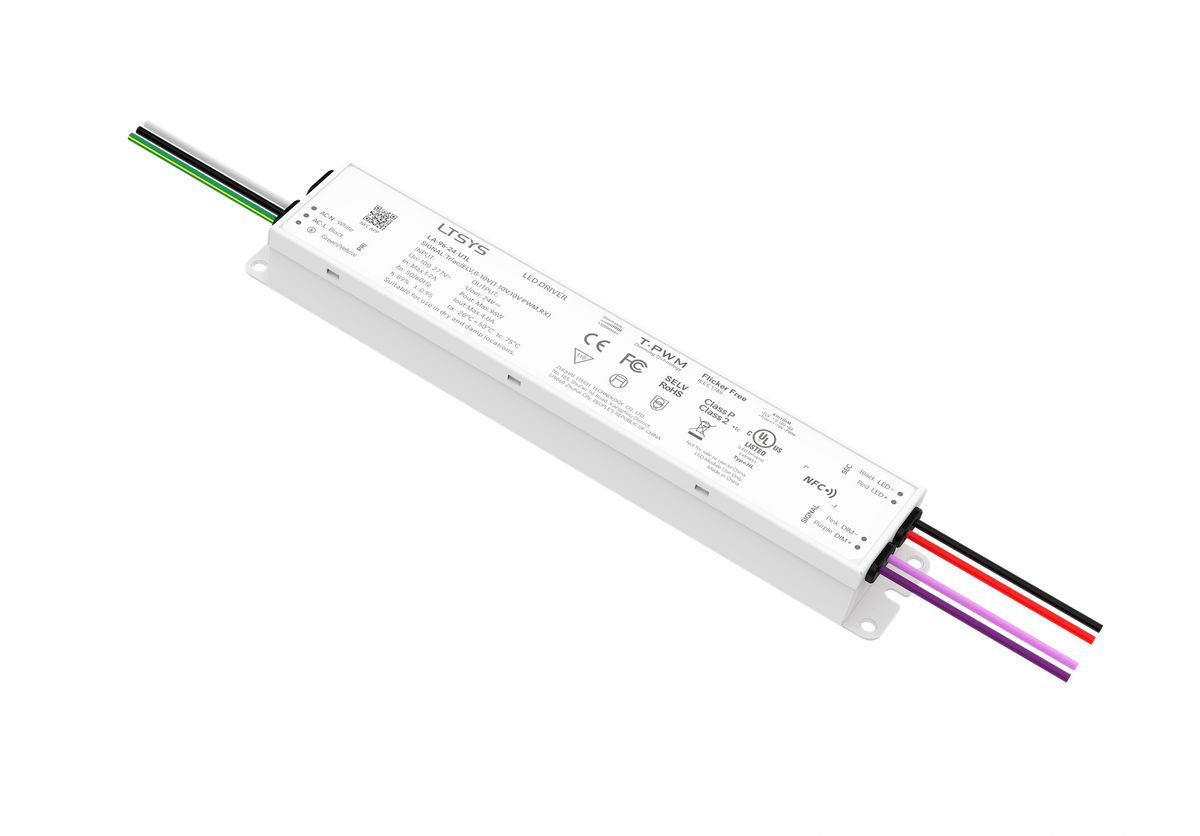

LTECH LA-96-24-U1L 96W 24V 6-in-1 Dimmable LED Driver

Constant Voltage Driver with Triac/ELV, 0-10V Dimming and NFC Programming

The LTECH LA-96-24-U1L is a professional 96W constant-voltage LED driver designed for 24V LED lighting applications. Providing a regulated 24V DC output at up to 4A, its robust metal housing and IP20 construction make it suitable for residential, hospitality, retail, commercial and architectural indoor lighting installations.

Featuring versatile 6-in-1 dimming, the driver supports leading-edge Triac, trailing-edge ELV, 0-10V, 1-10V, 10V PWM and RX control. It provides smooth dimming from 0–100% down to 0.01%, with soft-on and fade-in functions for comfortable lighting transitions. The driver is also designed for compatibility with a range of commonly used dimmers, including selected Lutron and Legrand models.

Integrated NFC programming allows operating parameters to be configured using the LTECH NFC Lighting app and a compatible smartphone. Parameters including PWM frequency, power-on dimming time, turn-on calibration and 0-10V interface mode can be read, adjusted and written directly to the driver while it is powered off, helping simplify commissioning and installation.

Operating from a wide 100–277V AC input, the LA-96-24-U1L provides up to 89% typical efficiency and incorporates intelligent thermal management together with overheat, over-voltage, overload and short-circuit protection with automatic recovery. It is UL Class 2 and Class P certified, supports Type HL applications, and offers a normal service life of up to 100,000 hours backed by a 5-year manufacturer warranty.
