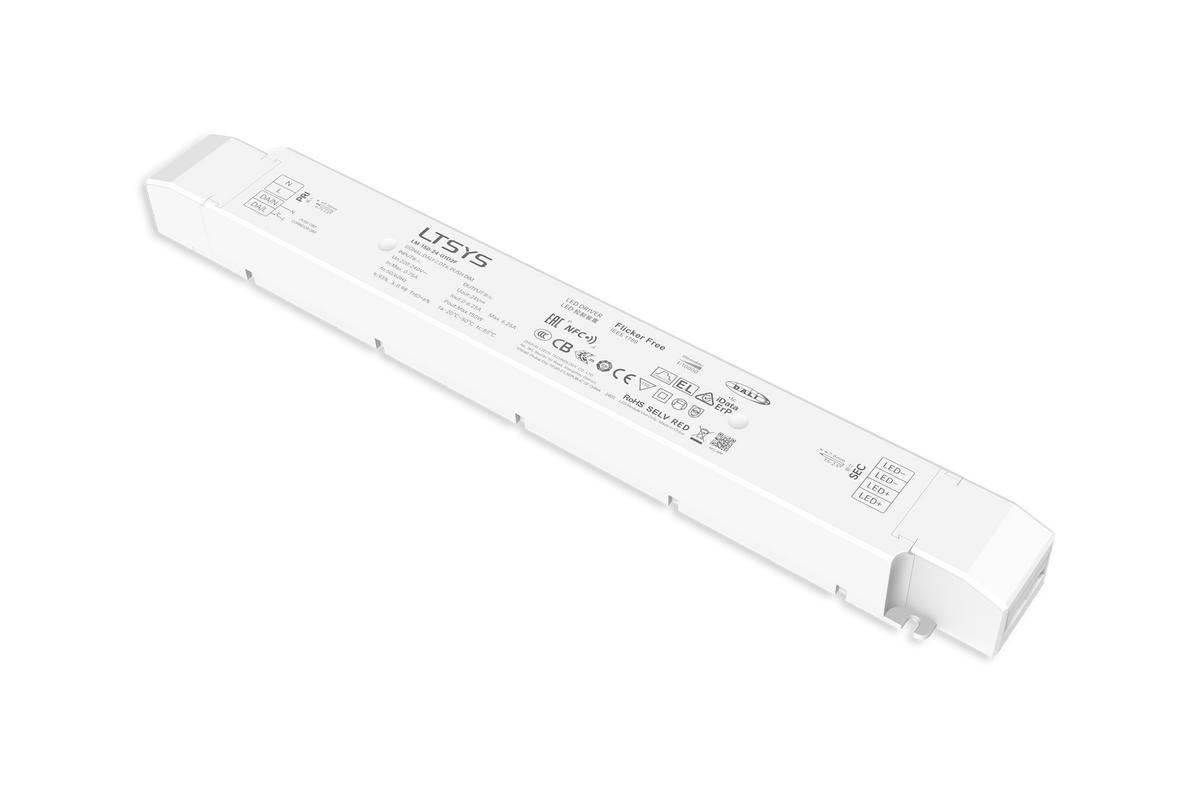

LTECH LM-150-24-G1D2F 150W 24V DALI-2 LED Driver

Constant Voltage Driver with DALI-2, Push DIM and NFC Programming

The LTECH LM-150-24-G1D2F is a 150W constant-voltage LED driver designed for professional 24V LED lighting applications. Providing a regulated 24V DC output at up to 6.25A, it is well suited to architectural, retail, hospitality, commercial and residential lighting installations.

Supporting DALI-2 DT6 and Push DIM control, the driver provides smooth digital dimming from 0–100% down to 0.01%. Corridor lighting control is also supported, allowing compatible sensors to provide configurable full-output, standby and switch-off sequences for energy-efficient lighting applications.

Integrated NFC programming allows the DALI address, dimming curve, PWM frequency, brightness range, power-on settings and corridor lighting parameters to be configured using the LTECH NFC Lighting app. The driver also supports L-Data and DALI Parts 251, 252 and 253 for enhanced digital configuration, energy reporting and maintenance information.

Operating from a 220–240V AC input, the LM-150-24-G1D2F provides up to 93% efficiency with high power factor and flicker-free performance. Overheat, over-voltage, overload and short-circuit protection are built in, while its two SELV constant-voltage outputs, 100,000-hour nominal service life and 5-year manufacturer warranty provide dependable performance for professional 24V LED lighting systems.
