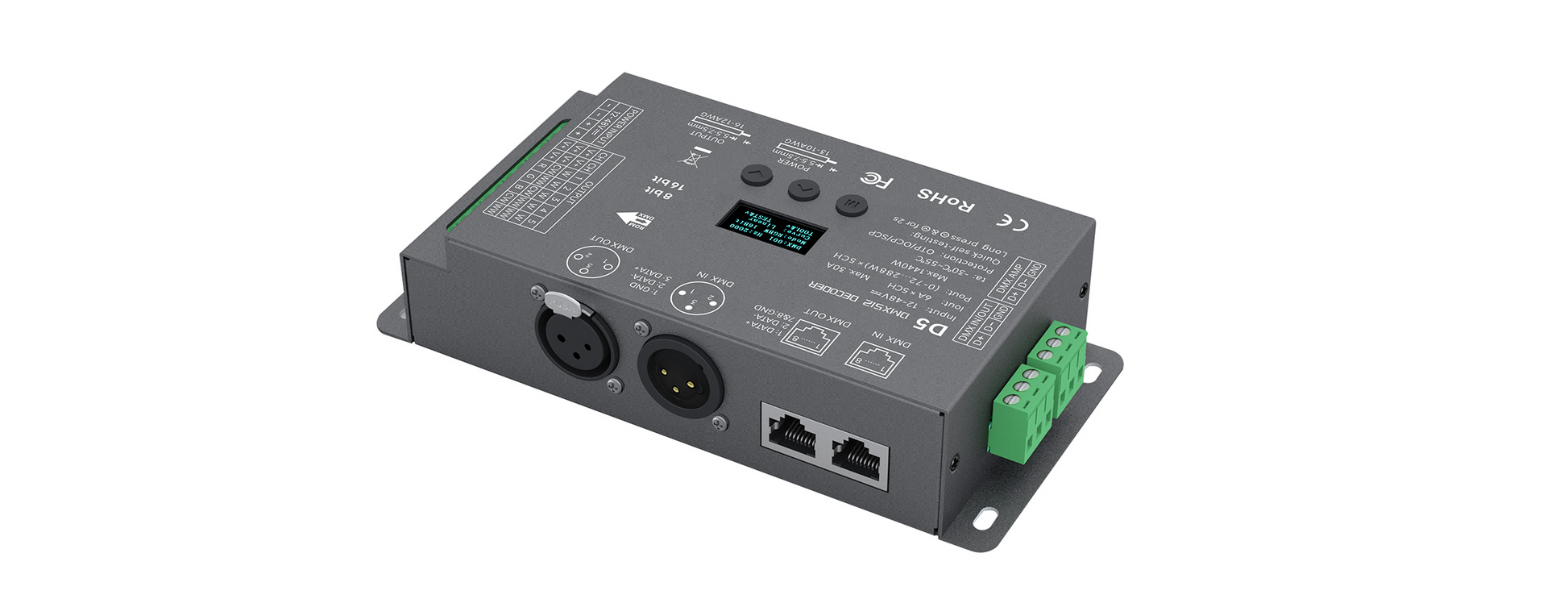

LTECH D5 5-Channel DMX512/RDM LED Decoder

12–48V Constant Voltage DMX Decoder for RGBW and RGBCW LED Control

The LTECH D5 is a professional 5-channel DMX512/RDM decoder designed for controlling constant-voltage LED lighting. It supports single-colour dimming, tunable white, RGB, RGBW and RGBCW applications, making it ideal for architectural, hospitality, retail and commercial lighting projects.

Operating from a 12–48V DC input, the D5 provides five independent output channels rated at up to 6A per channel, with a maximum total output current of 30A. Its flexible output configuration makes it suitable for a wide range of multi-channel LED lighting systems, including RGBW and five-channel colour applications.

The D5 supports both DMX512 and RDM communication, with 3-pin XLR, RJ45 and terminal connections for straightforward system integration. Selectable 8-bit or 16-bit grey levels and adjustable dimming curves provide smooth and precise lighting control across professional installations.

Compact and easy to integrate, the D5 also includes reverse-polarity, short-circuit, over-current and over-temperature protection with automatic recovery. Its combination of five-channel output, high current capacity and flexible DMX control makes it a dependable solution for professional constant-voltage LED lighting systems.
