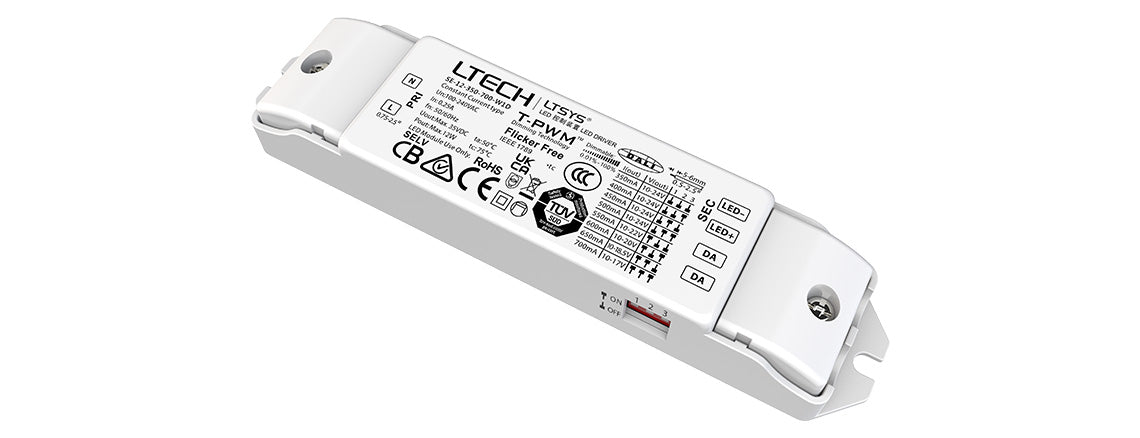

LTECH LED Constant Current Driver: DALI Dimmable
Dimming Interface: DALI
T-PWM™ digital dimming
DIP switch for multiple optional currents' quick selection
Dimming range: 0~100%, LED start at 0.01% possible
DALI dimming curve: liner curve or logarithmic curve
0-100% flicker-free (IEEE 1789 standard)
Ultra-low consumption of 0-10V ports: < 0.05mA
Innovative thermal management technology, intelligent power life protection
Over-heat / Over load / Short circuit protection, recover automatically
DALI bus standard: IEC62386-101,102, 207
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
5 years warranty (Rubycon capacitor)
