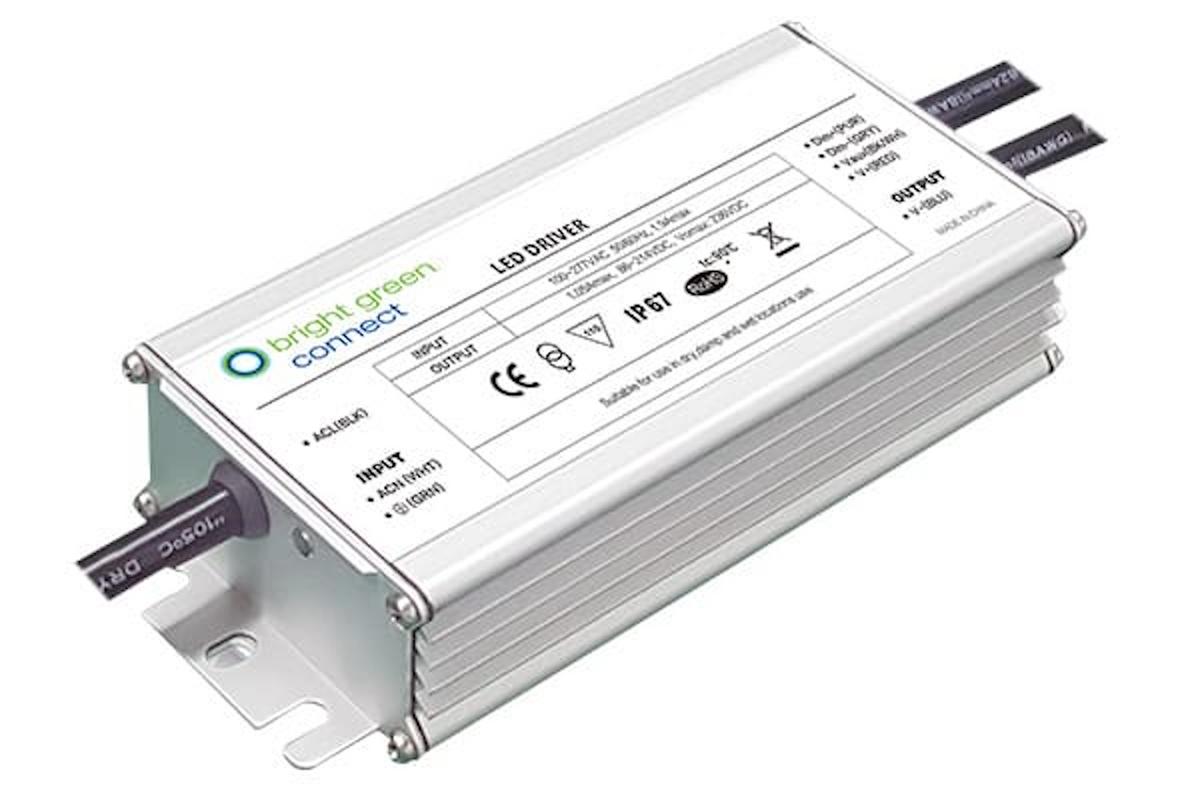

Bright Green Connect PXS-200-V012-M 200W 12V DMX Dimmable Constant Voltage LED Driver

IP67 DMX-Controlled LED Driver for Professional Indoor and Outdoor Lighting

The Bright Green Connect PXS-200-V012-M is a high-performance 200W constant-voltage LED driver designed for reliable and flexible professional lighting applications. Featuring DMX dimming control and programmable addressing, it is ideal for compatible 12V LED strips, architectural lighting, decorative installations and commercial lighting systems requiring precise digital brightness control.

Operating from a wide 90–305V AC or 127–420V DC input, the driver delivers a regulated 12V DC output with a maximum rated power of 200W and an output current rating of up to 16.7A, subject to the maximum power limit. Its power factor of greater than 0.90 at 60–100% load supports efficient operation, while low total harmonic distortion helps maintain dependable electrical performance across demanding lighting installations.

The PXS-200-V012-M supports DMX dimming with programmable address settings for integration into compatible digital lighting control systems. Its high-frequency PWM output supports smooth, flicker-free illumination, while dim-off functionality provides additional flexibility for controlled lighting installations. Integrated short-circuit, over-current and over-temperature protection helps safeguard connected LED equipment, with 10kV line-to-ground surge protection providing additional electrical resilience.

Designed for professional indoor and outdoor environments, the driver features a robust IP67-rated enclosure and an operating temperature range of -40°C to +70°C. Its durable housing is suitable for demanding installations where environmental protection is essential. With a rated lifetime of at least 100,000 hours at a 75°C case temperature, CB, ENEC and CCC certifications, and a 7-year manufacturer warranty under specified conditions, it provides a dependable solution for professional 12V DMX-controlled LED lighting systems.
