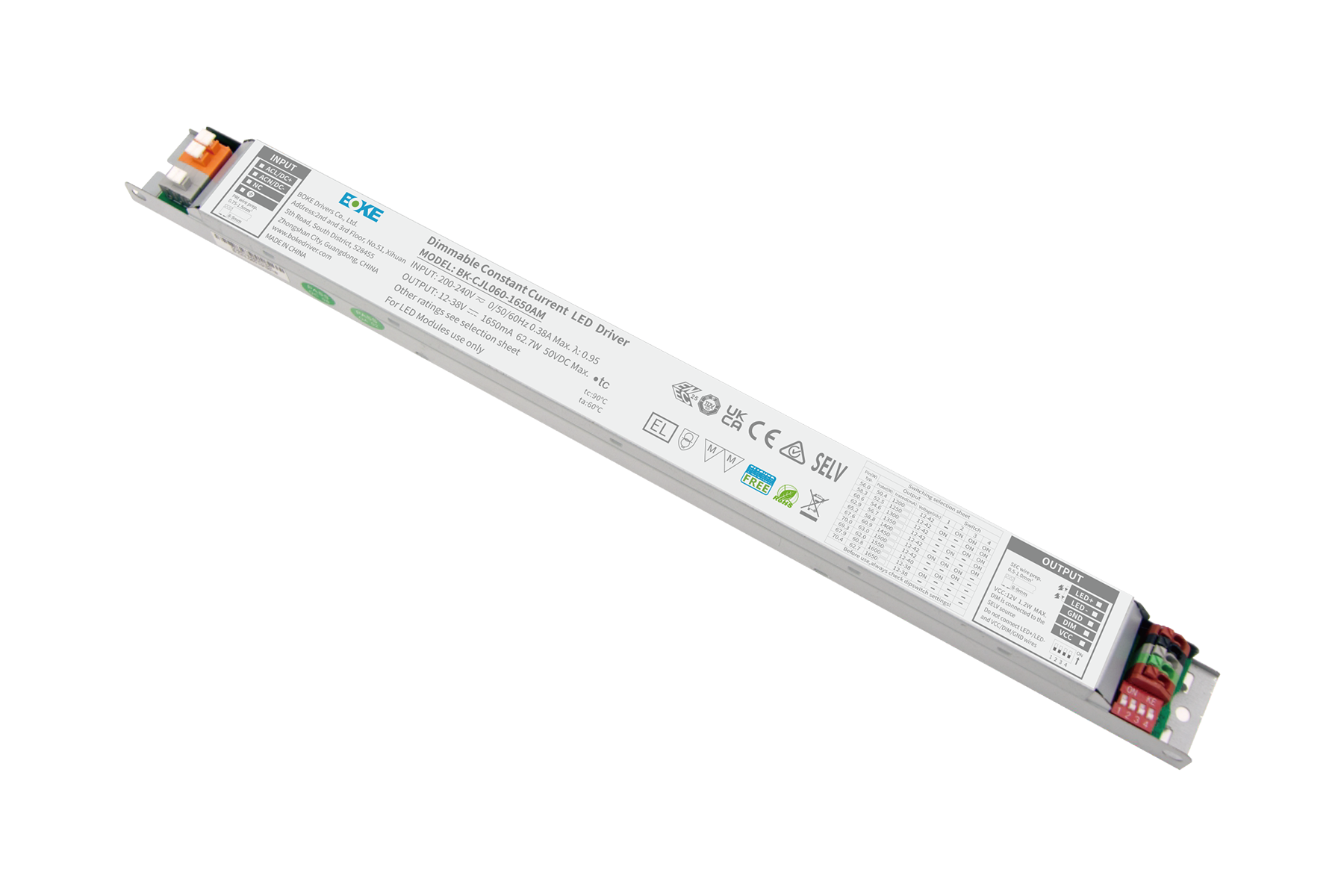

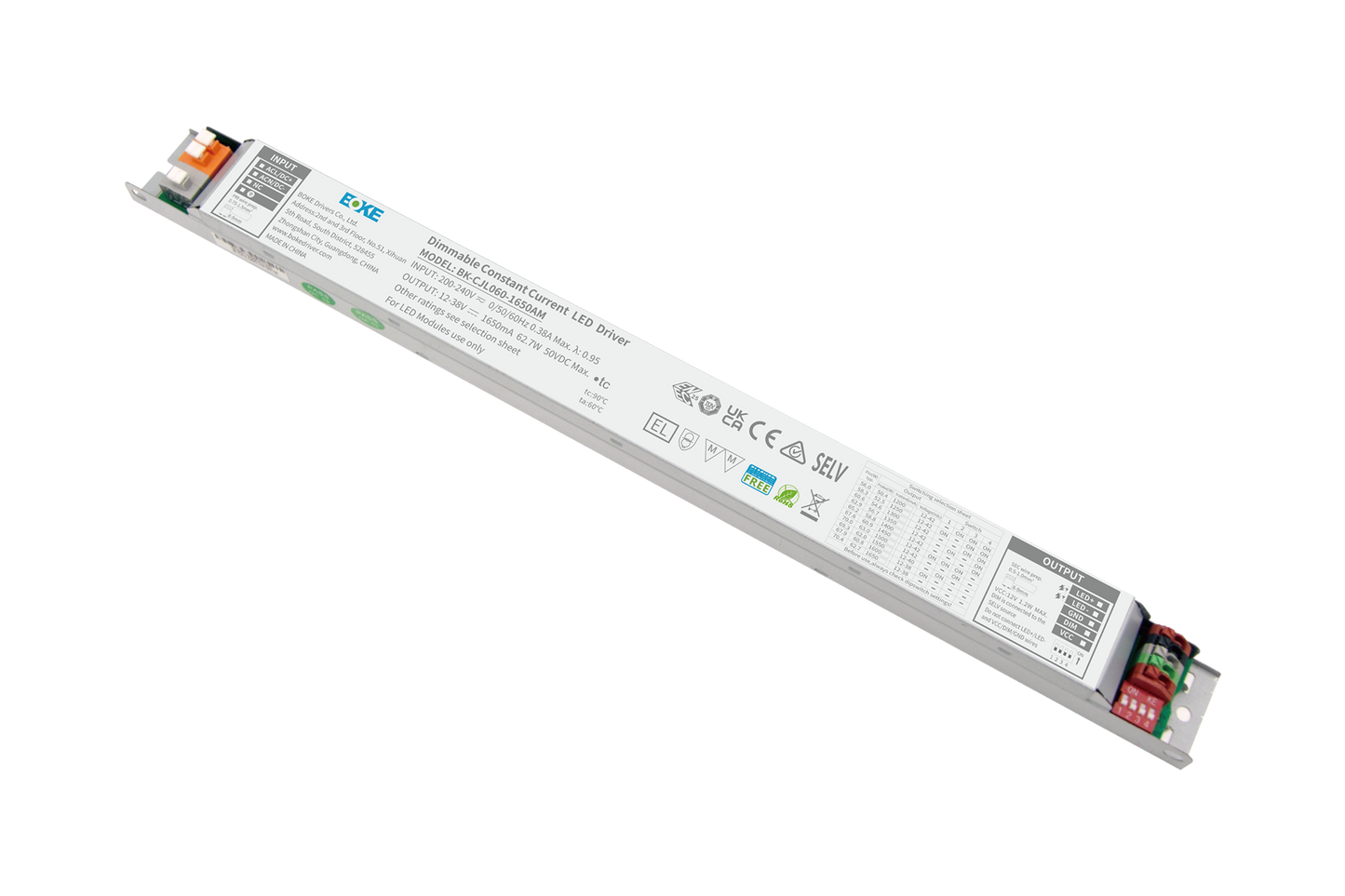

BOKE BK-CJL050-1300AM 49.4W 1–10V Dimmable LED Driver

Adjustable Constant Current Driver with 12V Auxiliary Output

The BOKE BK-CJL050-1300AM is a professional constant-current LED driver designed for reliable dimming and flexible current selection. With an adjustable output from 850mA to 1300mA, it is suitable for a wide range of commercial, retail and architectural LED lighting applications.

Operating from a 200–240V AC supply, the driver provides a 12–42V DC output with a maximum power of 49.4W. Ten selectable current settings can be configured using the integrated DIP switch, allowing the driver output to be matched accurately to compatible LED modules.

The BK-CJL050-1300AM supports 1–10V, 10V PWM and resistance dimming, providing smooth and flexible brightness control. It also features a 12V auxiliary output for powering compatible sensors and control devices, helping simplify lighting system integration.

Compact and easy to integrate, the driver offers high power factor, flicker-free performance and efficient operation. Its adjustable constant-current output and versatile dimming capability make it a dependable solution for professional LED lighting installations.
