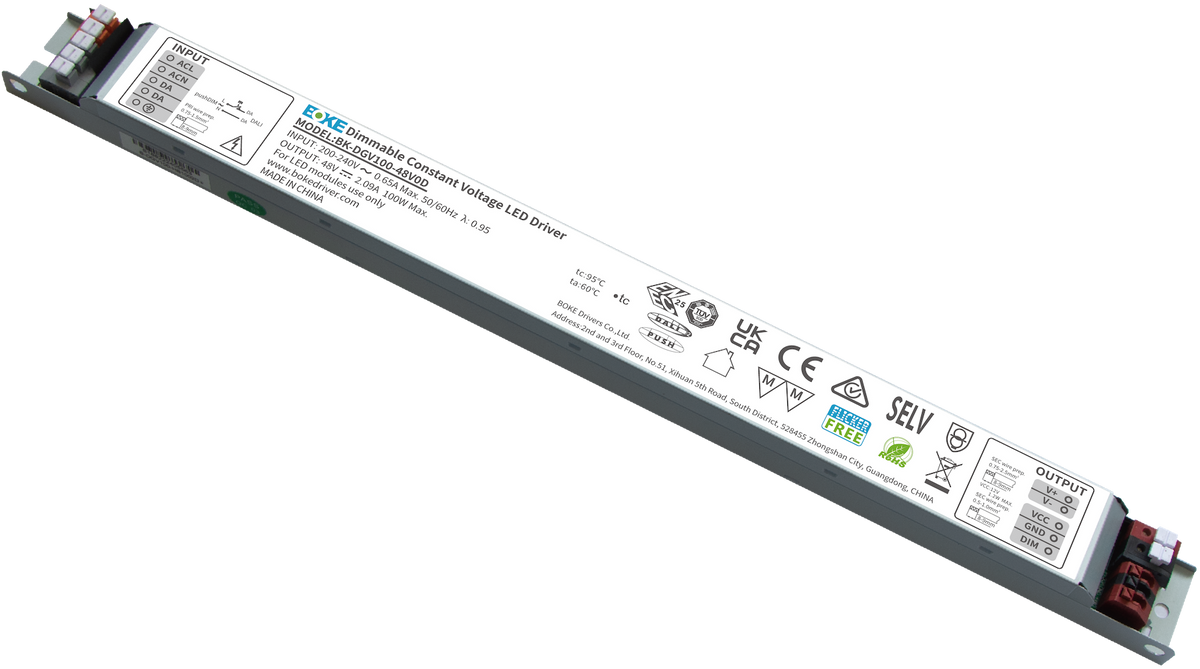

BOKE BK-DGV100-48V0D 100W 48V DALI-2 Dimmable Constant Voltage LED Driver

IP20 DALI-2, PushDIM and 1–10V LED Driver for Professional Indoor Lighting

The BOKE BK-DGV100-48V0D is a high-performance 100W constant-voltage LED driver designed for reliable and flexible professional indoor lighting applications. Featuring DALI-2 digital dimming, pushDIM and 1–10V analogue control, it is ideal for compatible 48V LED strips, linear lighting, architectural lighting and commercial lighting systems requiring smooth and precise brightness adjustment.

Operating from a rated 200–240V AC input, the driver provides a regulated 48V DC output with a maximum rated power of 100W and a manufacturer-listed output current of up to 2.09A. Its typical power factor of 0.99 and efficiency of 92% support dependable electrical performance, while its slim linear design allows integration into compatible lighting installations where space-efficient power supplies are required.

The BK-DGV100-48V0D supports DALI-2 DT6, pushDIM, 1–10V analogue dimming, 10V PWM and resistance-based brightness control. Its 1–100% dimming range and high-frequency PWM output support smooth, flicker-free illumination through compatible lighting controllers. An integrated 12V DC, 100mA auxiliary power supply offers additional flexibility for powering suitable low-power control modules or sensors. Built-in short-circuit and overload protection helps safeguard the driver and connected lighting equipment.

Designed for professional indoor environments, the driver features a slim IP20-rated, Class I enclosure measuring 355 × 30 × 21mm without optional accessories. Its operating temperature range of -20°C to +60°C supports a variety of indoor lighting installations, subject to appropriate thermal conditions. With a nominal lifetime of up to 100,000 hours, DALI-2 certification, SELV output and a 5.5-year manufacturer's guarantee, it provides a dependable solution for professional high-power 48V dimmable LED lighting systems.
