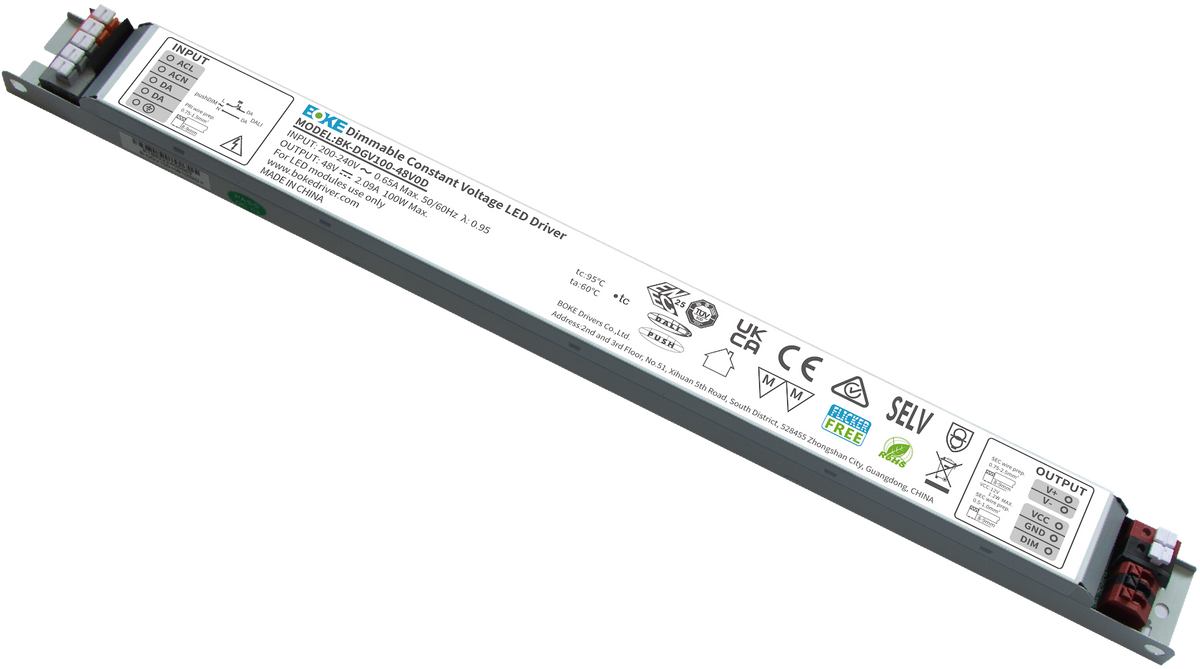

BOKE BK-DGV060-48V0D 57.6W 48V DALI-2 Dimmable Constant Voltage LED Driver

IP20 DALI-2, PushDIM and 1–10V LED Driver for Professional Indoor Lighting

The BOKE BK-DGV060-48V0D is a high-performance 57.6W constant-voltage LED driver designed for reliable and flexible professional indoor lighting applications. Featuring DALI-2 digital dimming, pushDIM and 1–10V control, it is ideal for compatible 48V LED strips, linear lighting, architectural lighting and commercial lighting systems requiring smooth and precise brightness adjustment.

Operating from a rated 200–240V AC input, the driver provides a regulated 48V DC output with a maximum rated power of 57.6W and an output current of up to 1.2A. Its typical power factor of 0.98 and efficiency of 90% support dependable electrical performance, while its slim linear construction allows integration into compatible lighting systems where space-efficient power supplies are required.

The BK-DGV060-48V0D supports DALI-2 DT6, pushDIM, 1–10V analogue dimming, 10V PWM and resistance-based brightness control. Its 1–100% dimming range and high-frequency PWM output provide smooth, flicker-free illumination through compatible controllers. An integrated 12V DC, 100mA auxiliary power supply offers additional flexibility for powering suitable low-power control modules or sensors. Built-in short-circuit and overload protection helps protect the driver and connected lighting equipment.

Designed for professional indoor environments, the driver features a slim IP20-rated, Class I enclosure measuring 285 × 30 × 21mm without optional accessories. Its operating temperature range of -20°C to +60°C supports a variety of indoor lighting installations, subject to appropriate thermal conditions. With a nominal lifetime of up to 100,000 hours, DALI-2 certification, SELV output and a 5.5-year manufacturer's guarantee, it provides a dependable solution for professional 48V dimmable LED lighting systems.
